NKK Switches
M2B15BA5G03-CC
Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2B15BA5G03-CC technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Gold
Current Rating
1A
Electrical Life
100000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Mechanical Life
200000Cycles
Min Operating Temperature
-30°C
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
M2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2B15BA5G03-CC Datasheet
Download the complete datasheet for NKK Switches M2B15BA5G03-CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

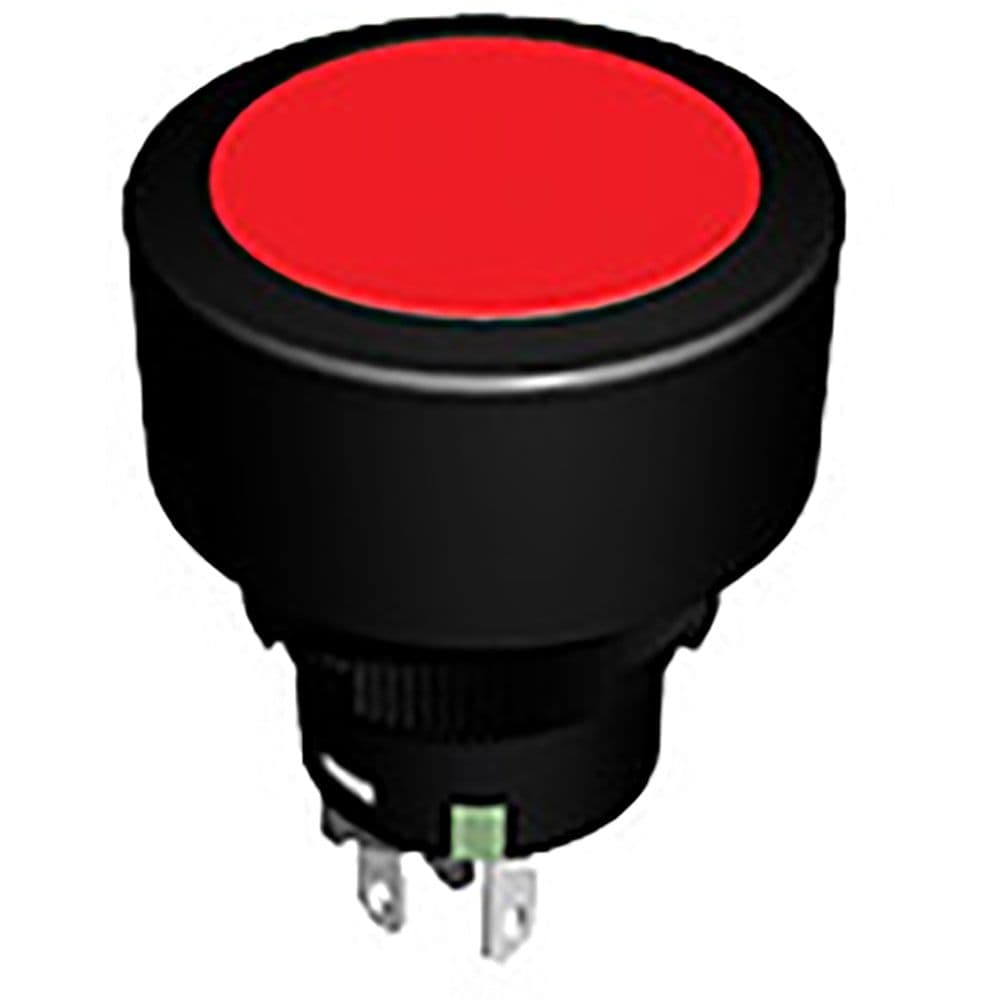

Product Images
