SPDT momentary pushbutton switch with a round brass actuator and gold-plated copper contacts. Features a 0.1A current rating at 28VAC/28VDC, 0.4VA power rating, and PC pin termination for through-hole mounting. Offers 100,000 electrical cycles and 200,000 mechanical cycles, operating between -30°C and 85°C. Lead-free and RoHS compliant.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2B15BA5G03-CH technical specifications.
General
Actuator Material
Brass
Actuator Type
Round, Button
Contact Material
Copper
Contact Plating
Gold
Current Rating
1A
Depth
6.6mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
12.7mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
200000Cycles
Min Operating Temperature
-30°C
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
M2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2B15BA5G03-CH Datasheet
Download the complete datasheet for NKK Switches M2B15BA5G03-CH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

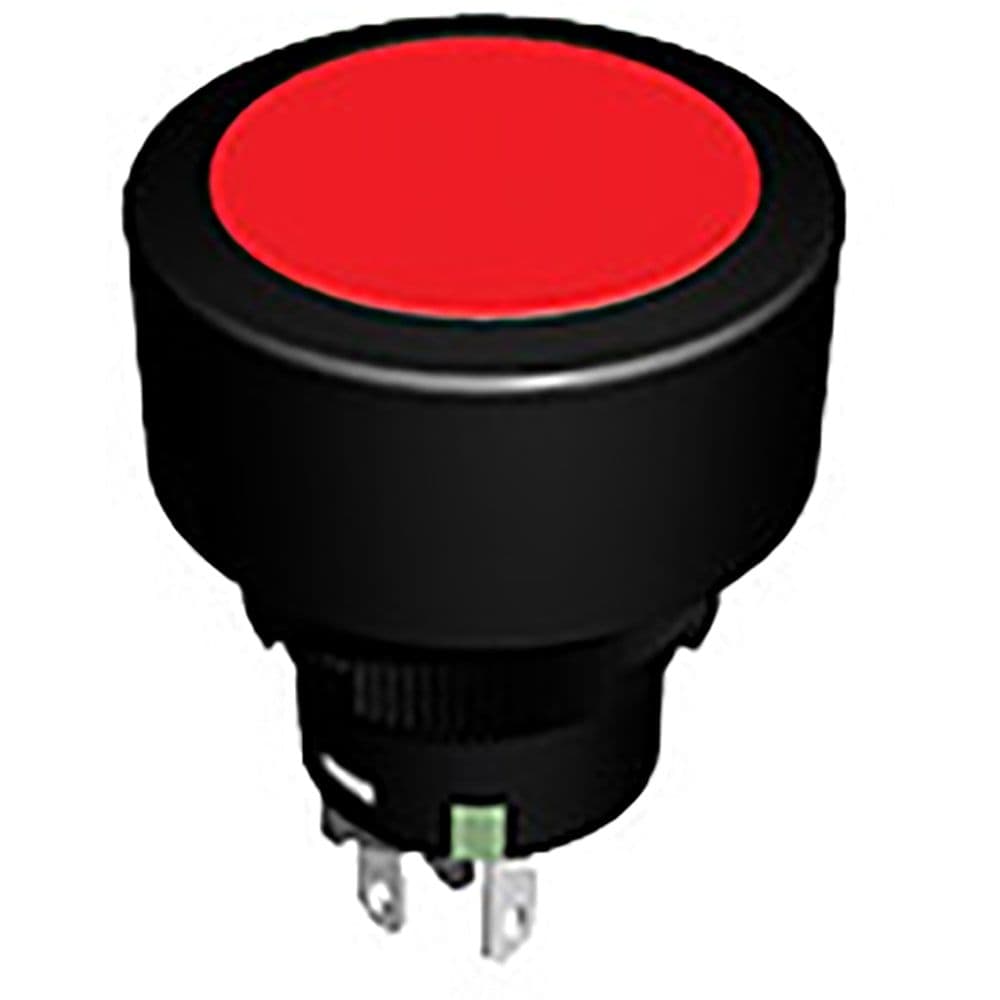

Product Images
