NKK Switches
MB2065LD3G01-CC
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Alternate Contact Solder Lug Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2065LD3G01-CC technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Gold
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Lead Free
Contains Lead
Max Operating Temperature
85°C
Mechanical Life
50000Cycles
Min Operating Temperature
-30°C
Mount
Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
MB2000
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches MB2065LD3G01-CC Datasheet
Download the complete datasheet for NKK Switches MB2065LD3G01-CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

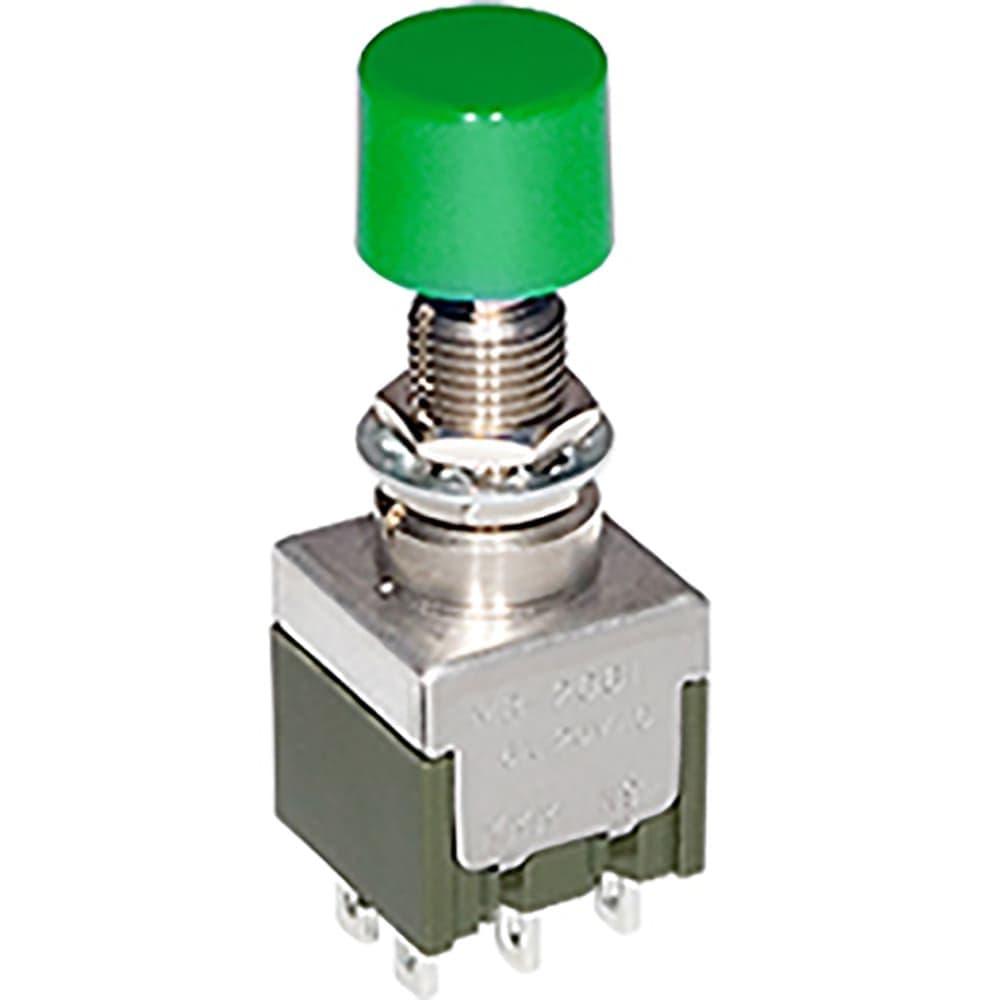

Product Images
