SPDT pushbutton switch featuring a round brass plunger actuator. Offers a 6A contact current rating at 250VAC and 30VDC, with silver contacts and plating. This panel-mount switch provides alternate ON-ON functionality with solder lug terminations and a 2-position, 1-pole configuration. Rated for 125VAC and 30VDC, it boasts an electrical life of 25,000 cycles and a mechanical life of 100,000 cycles.
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2065SB1W01 technical specifications.
General
Actuator Material
Brass
Contact Current Rating
6A
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
7.9mm
Electrical Life
25000Cycles
Lead Free
Lead Free
Length
13mm
Max Current Rating
6A
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Panel
Number of Poles
1
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MB2000
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches MB2065SB1W01 Datasheet
Download the complete datasheet for NKK Switches MB2065SB1W01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

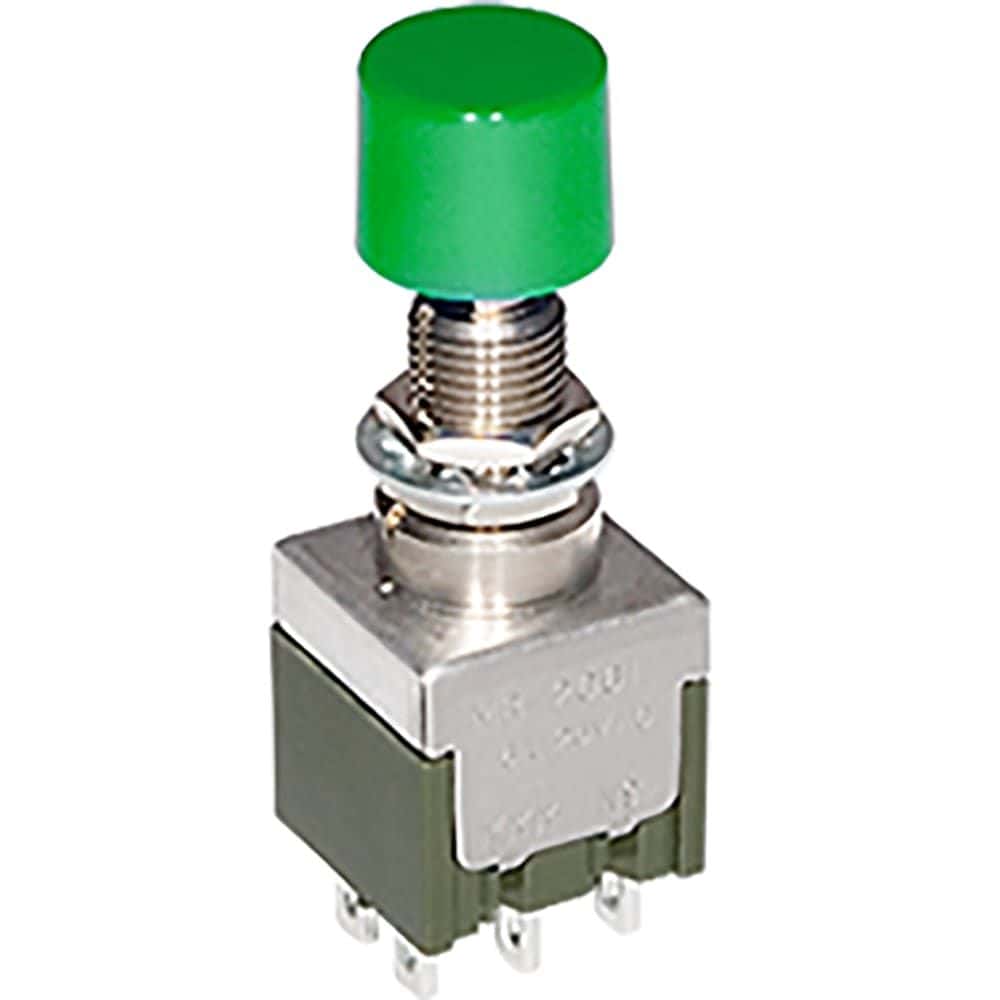

Product Images
