NKK Switches
MB2411A1W03

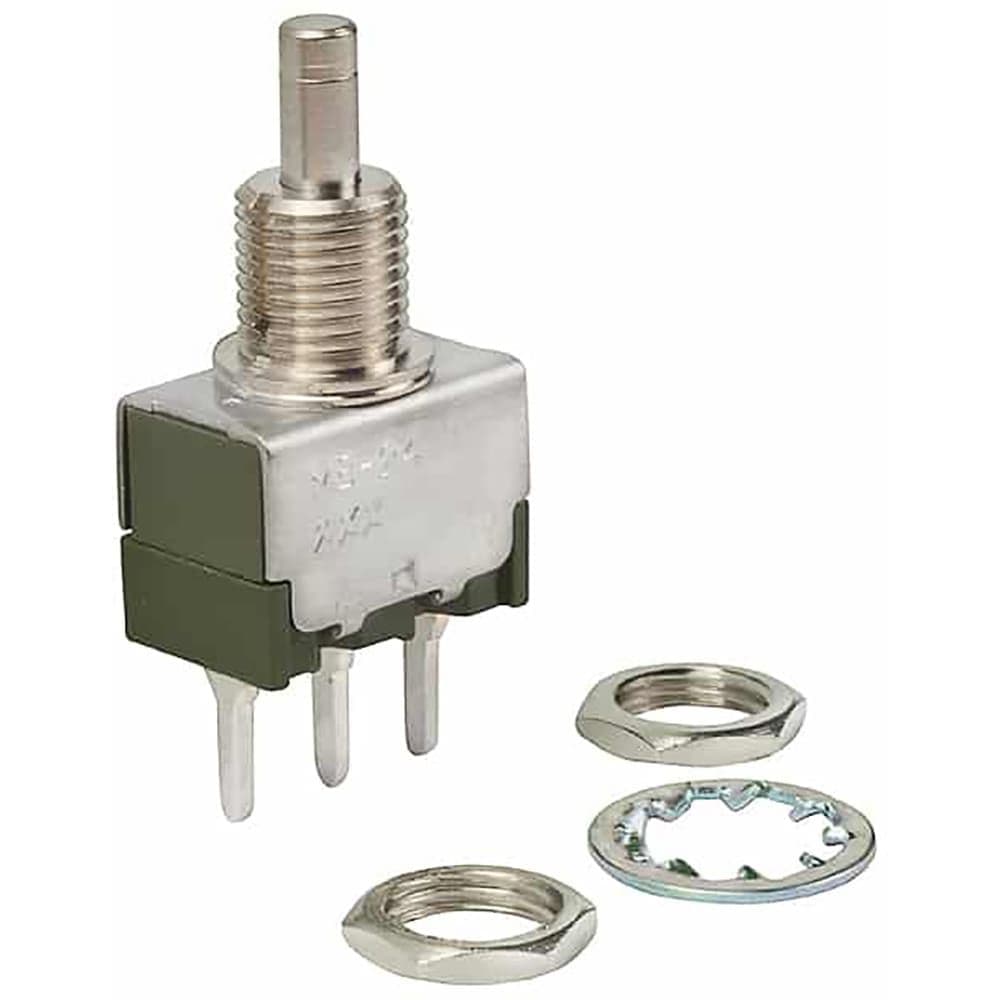

Switch Push Button ON (ON) SPDT Round Plunger 3A 125VAC Momentary Contact Panel Mount/Through Hole PC Pins
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2411A1W03 technical specifications.
General
Actuator Material
Brass
Contact Material
Silver
Contact Plating
Silver
Depth
8mm
Electrical Life
25000Cycles
Length
13mm
Max Current Rating
3A
Max Operating Temperature
85°C
Mechanical Life
200000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Mount
Panel
Packaging
Bulk
RoHS Compliant
Yes
Series
MB2400
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
NKK Switches MB2411A1W03 Datasheet
Download the complete datasheet for NKK Switches MB2411A1W03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
