NKK Switches
ND3FC10H-R
Rotary Switch, 10 Positions, Circular, 0.1A, 5VDC, Solder Terminal, Rotary Screw Actuator, Surface Mount-right Angle,
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches ND3FC10H-R technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Life (Hours) | 20000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Number of Switches | 10 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.05inch |
| RoHS Compliant | Yes |
| Series | ND3 |
| Termination | Gull Wing |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches ND3FC10H-R Datasheet
Download the complete datasheet for NKK Switches ND3FC10H-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

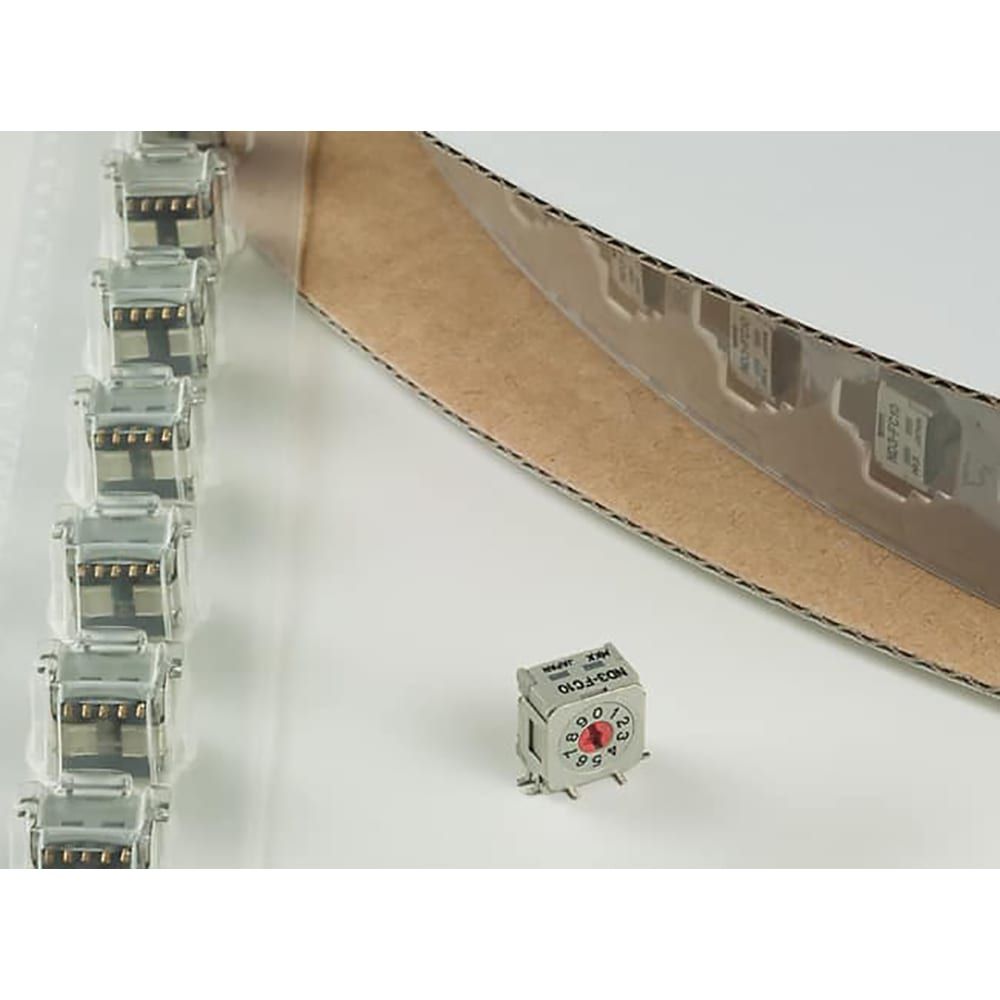

Product Images
