NKK Switches
ND3KR10H
Switch DIP N.O./N.C. SP10T 10 Shaft 0.1A 5VDC Gull Wing 2000Cycles 1.27mm SMD Tray
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches ND3KR10H technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper |
| Contact Plating | Gold |
| Lead Free | Contains Lead |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | ND3 |
| Termination | Gull Wing |
| Throw Configuration | SP10T |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches ND3KR10H Datasheet
Download the complete datasheet for NKK Switches ND3KR10H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

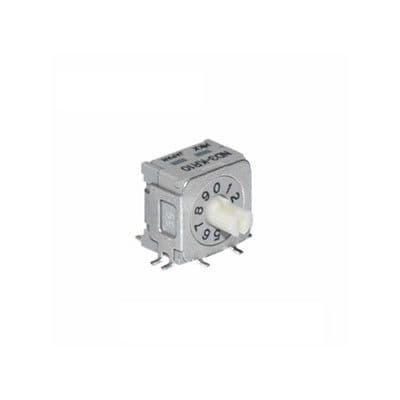

Product Images
