NKK Switches
NP0115AG03NN-C
Switch Push Button OFF (ON) SPST Flush Square Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches NP0115AG03NN-C technical specifications.
General
| Actuator Type | Square, Button |
| Contact Plating | Gold |
| Electrical Life | 500000Cycles |
| Illumination Type | Illuminated |
| Max Operating Temperature | 70°C |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | NP01 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches NP0115AG03NN-C Datasheet
Download the complete datasheet for NKK Switches NP0115AG03NN-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

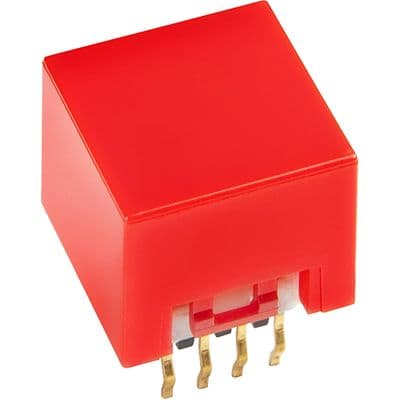

Product Images
