NKK Switches
NP0115HG03NN-C
Switch Push Button OFF (ON) SPST Flush Square Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Current Rating14.2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches NP0115HG03NN-C technical specifications.
General
Actuator Type
Square, Button
Contact Plating
Gold
Current Rating
14.2mA
Electrical Life
500000Cycles
Illumination Type
Illuminated
Max Operating Temperature
70°C
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Packaging
Bulk
Series
NP01
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches NP0115HG03NN-C Datasheet
Download the complete datasheet for NKK Switches NP0115HG03NN-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

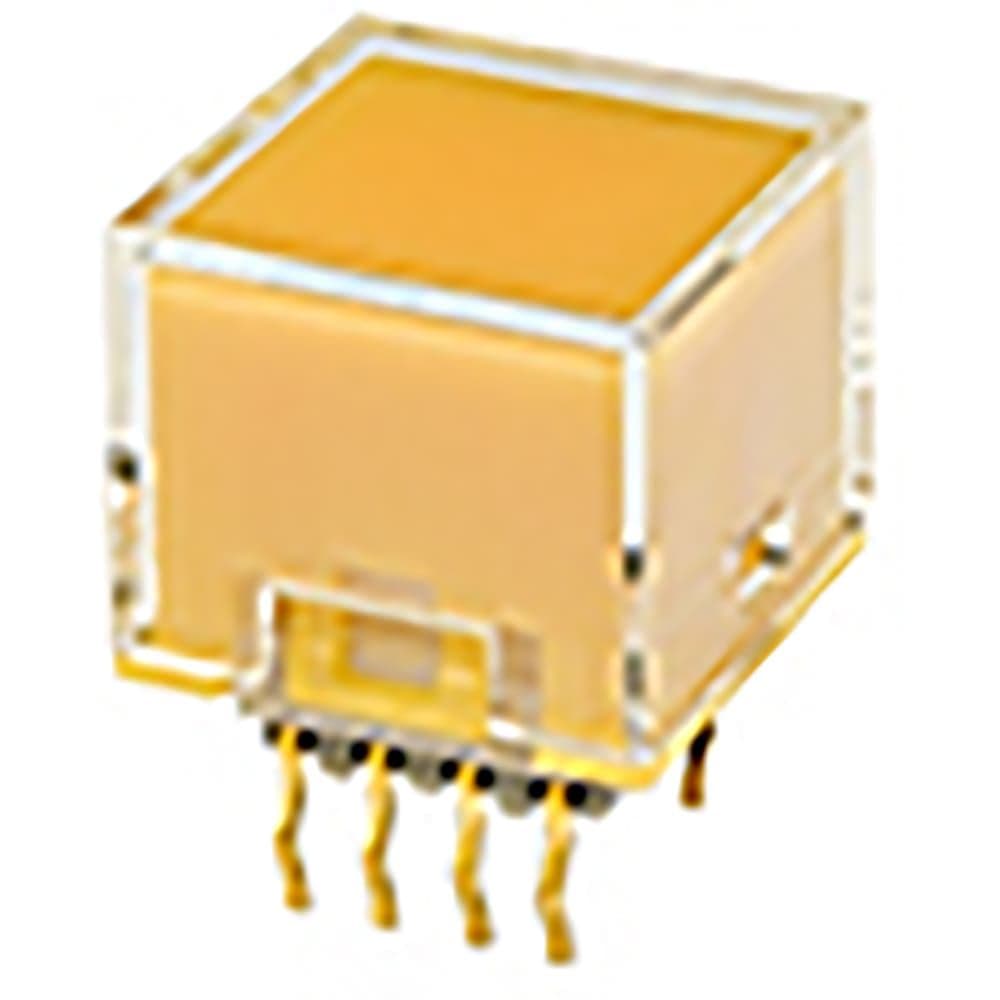

Product Images
