3PDT toggle switch with a 30A max current rating and 125VAC voltage rating, featuring a 22mm brass chrome plated standard round actuator and silver contacts. This non-illuminated, panel-mount switch offers screw termination and a vertical orientation, with an electrical life of 25,000 cycles. Operating between -10°C and 70°C, it is RoHS compliant.
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches S832 technical specifications.
General
| Actuator Length | 22mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Contact Plating | Silver |
| Depth | 43mm |
| Electrical Life | 25000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 42mm |
| Max Current Rating | 30A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S |
| Switch Function | On-On |
| Termination | Screw |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches S832 Datasheet
Download the complete datasheet for NKK Switches S832 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

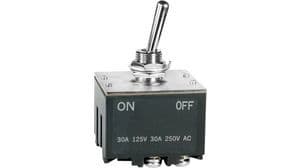

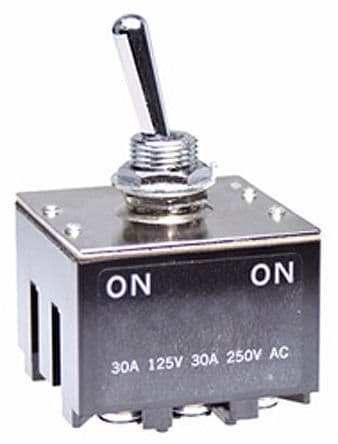

Product Images
