NKK Switches
SCB15S15B-3G
Switch Push Button ON (ON) SPDT Round Plunger 15A 250VAC Momentary Contact Quick Connect Panel Mount
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches SCB15S15B-3G technical specifications.
General
| Actuator Type | Round, Button |
| Contact Plating | Silver |
| Current Rating | 15A |
| Electrical Life | 50000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | SCB |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches SCB15S15B-3G Datasheet
Download the complete datasheet for NKK Switches SCB15S15B-3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

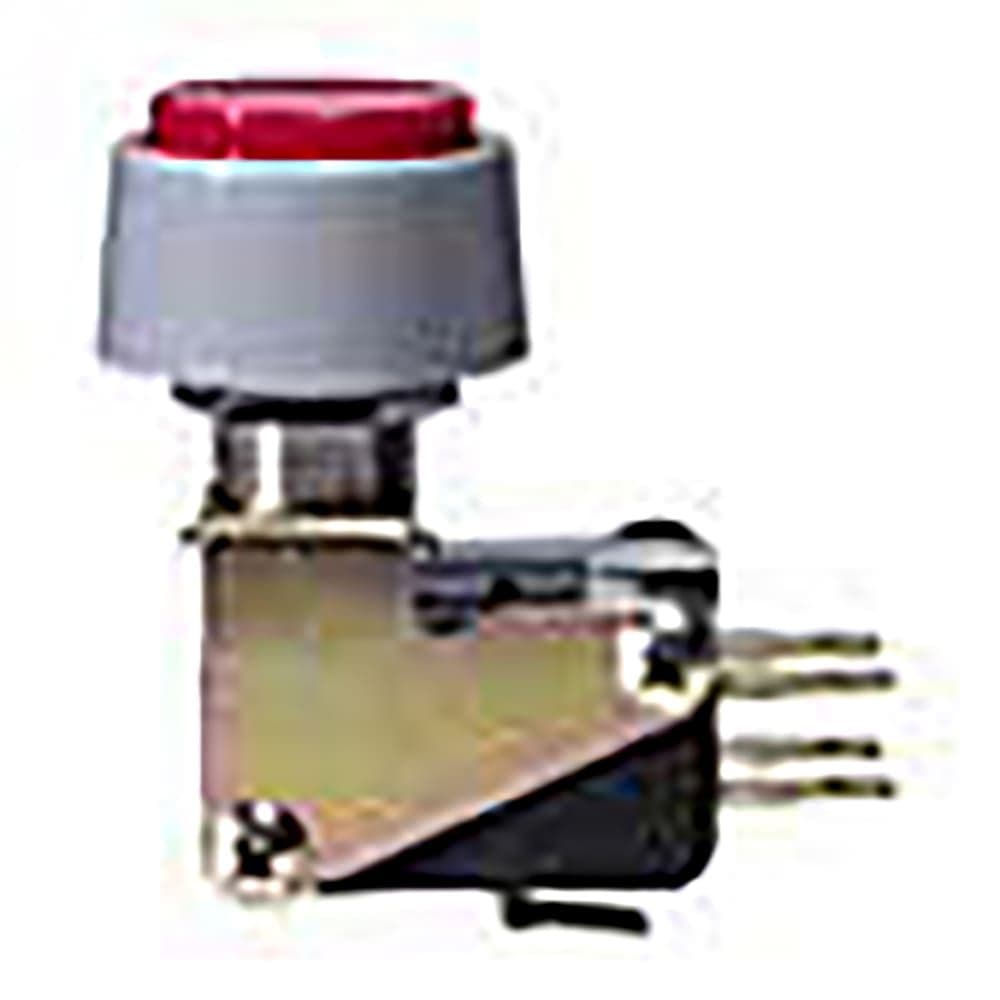

Product Images
