SPDT slide switch featuring a latched mechanism and a horizontal, right-angle through-hole mount. Offers a 2mm switch travel with a 2.5mm nylon actuator. Rated for 0.014A and 28VDC, with a maximum current rating of 100mA and a maximum AC voltage rating of 28V. Contact material includes brass, bronze, and gold with gold and silver plating, providing 10,000 electrical and mechanical life cycles. Operating temperature range is -15°C to 60°C, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches SS12SDH4 technical specifications.
General
Actuator Length
2.5mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Brass, Bronze, Gold
Contact Plating
Gold, Silver
Depth
6.5mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
10.2mm
Max Current Rating
100mA
Max Operating Temperature
60°C
Mechanical Life
10000Cycles
Min Operating Temperature
-15°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mount
Through Hole
Orientation
Horizontal
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SS
Switch Function
On-On
Switch Travel
2mm
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches SS12SDH4 Datasheet
Download the complete datasheet for NKK Switches SS12SDH4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

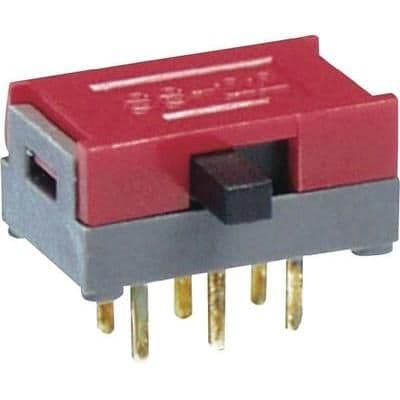

Product Images
