SPDT slide switch featuring a standard actuator with a 2.00mm length. This ultra-miniature, non-illuminated switch offers On-On circuitry with shorting contact timing. It is rated for 0.4VA (AC/DC) at 28V (AC/DC), with gold-plated phosphor bronze contacts. Designed for through-hole mounting with PC pin terminations, it boasts a mechanical and electrical life of 10,000 cycles and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches SS12SDP4 technical specifications.
General
Actuator Length
2mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Current Rating
100mA
Contact Material
Bronze, Brass, Gold
Contact Plating
Gold, Silver
Depth
4mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
10.2mm
Max Current Rating
100mA
Max Operating Temperature
60°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
10000Cycles
Min Operating Temperature
-15°C
Mount
Through Hole
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SS
Switch Function
On-On
Switch Travel
2mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches SS12SDP4 Datasheet
Download the complete datasheet for NKK Switches SS12SDP4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

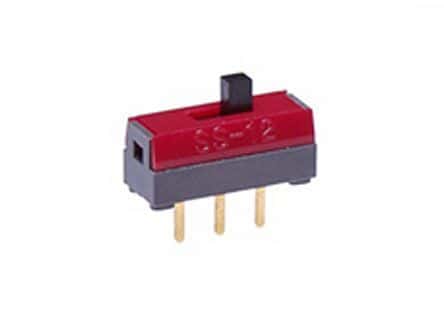

Product Images
