NKK Switches
UB15NBKG015C
Switch Push Button ON (ON) SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches UB15NBKG015C technical specifications.
General
| Contact Plating | Gold |
| Electrical Life | 200000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Red |
| Illumination Type | LED |
| Max Operating Temperature | 50°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Snap in, Panel |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches UB15NBKG015C Datasheet
Download the complete datasheet for NKK Switches UB15NBKG015C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

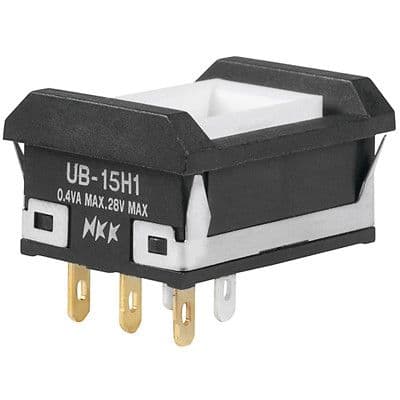

Product Images
