NKK Switches
UB15NBKW01N-B

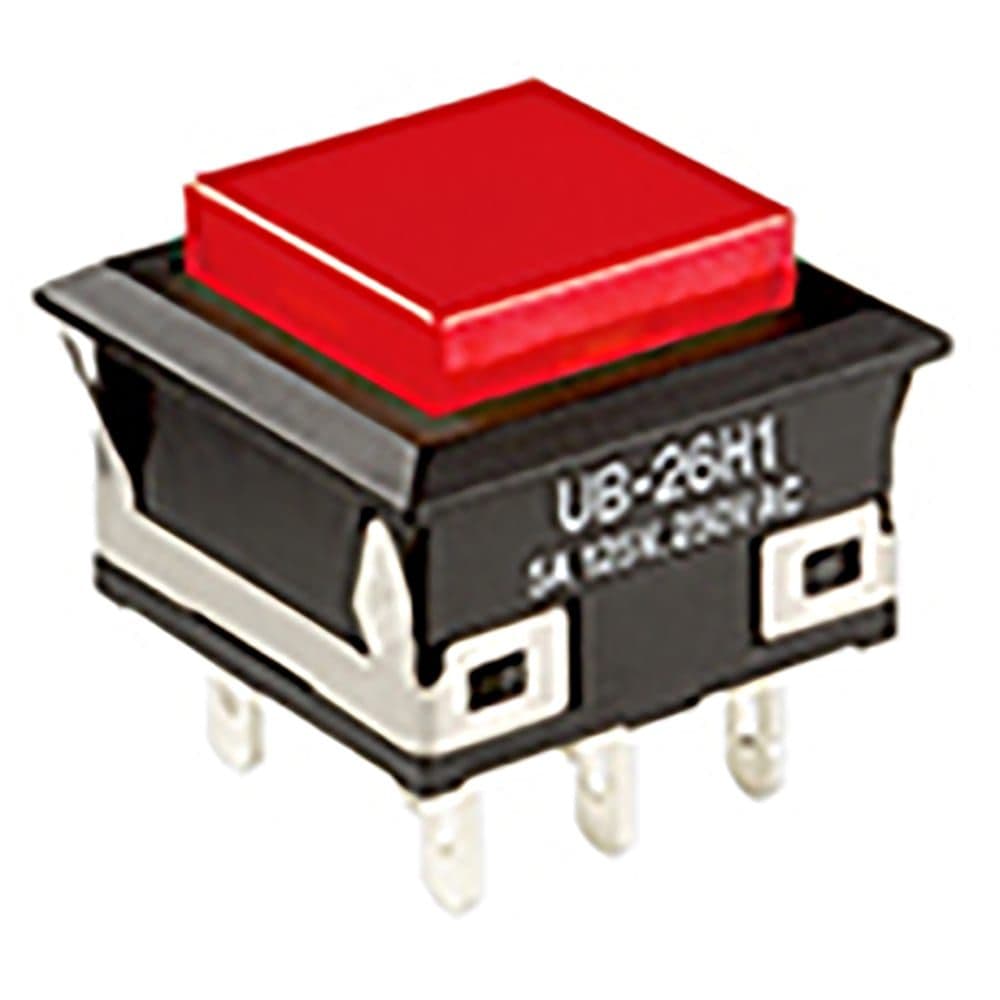

Switch Push Button ON (ON) SPDT Rectangular Button 5A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Package125
Current Rating5A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches UB15NBKW01N-B technical specifications.
General
Package/Case
125
Contact Plating
Gold
Current Rating
5A
Electrical Life
10000Cycles
Lead Free
Contains Lead
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-20°C
Mount
Snap in, Panel
Orientation
Vertical
Packaging
Tray
RoHS Compliant
Yes
Series
UB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
DPDT, SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB15NBKW01N-B Datasheet
Download the complete datasheet for NKK Switches UB15NBKW01N-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
