Illuminated pushbutton switch featuring a square red LED actuator. SPDT momentary contact with PC pin termination for through-hole mounting. Rated for 0.1A at 28VAC/28VDC, with a maximum current of 100mA. Offers a mechanical life of 1,000,000 cycles and an electrical life of 200,000 cycles. Constructed with gold-plated copper contacts and a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches UB15SKG035C-JJ technical specifications.
General
Actuator Type
Square, Button
Contact Material
Copper
Contact Plating
Gold
Depth
15.24mm
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Contains Lead
Length
15.24mm
Life (Hours)
1000000Hour
Max Current Rating
100mA
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
1000000Cycles
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
UB
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB15SKG035C-JJ Datasheet
Download the complete datasheet for NKK Switches UB15SKG035C-JJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

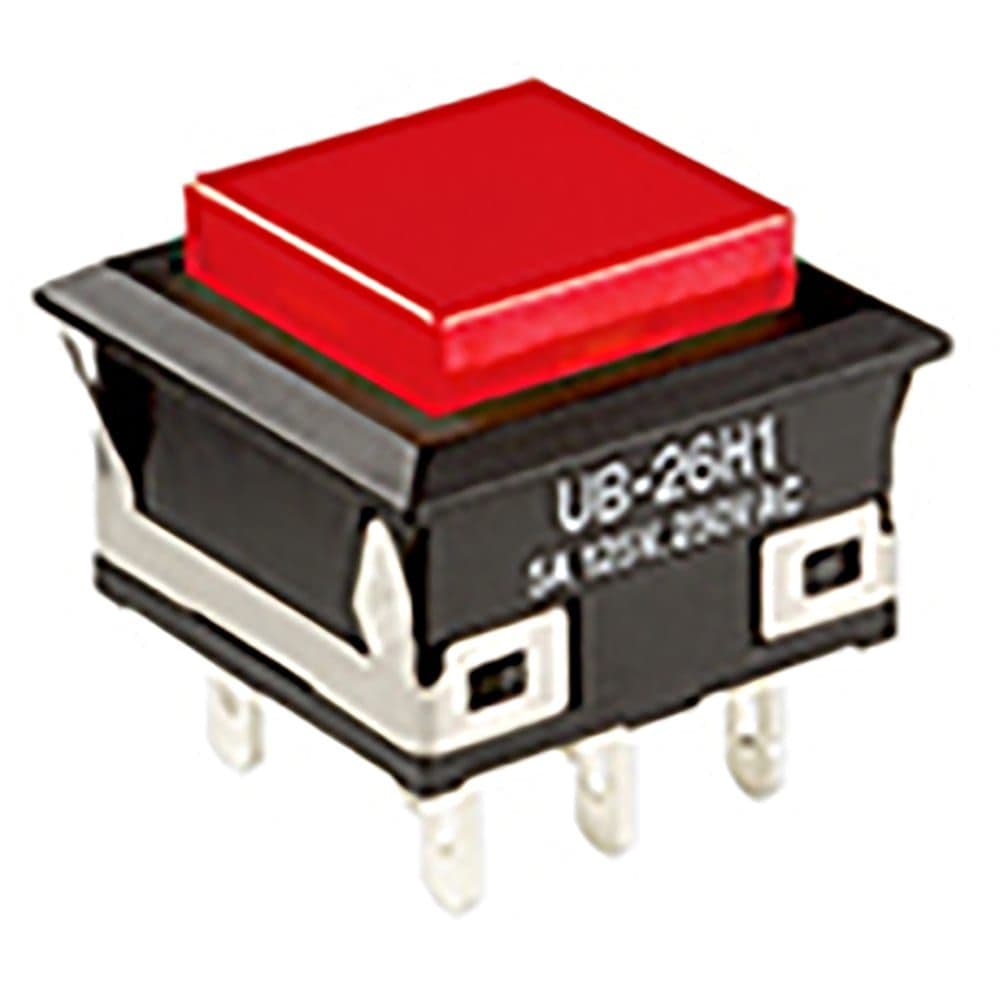

Product Images
