SPDT/DPDT maintained switch featuring a square button actuator. Rated for 5A at 125V AC and 30V DC, with silver contacts plated in gold and silver. Offers a panel mount design with snap-in capability and solder lug terminals. Achieves 10,000 electrical cycles and 200,000 mechanical cycles, operating between -20°C and 70°C. Constructed with UL94 V-0 flammability rating and is RoHS compliant.
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB16KKW01N-A technical specifications.
General
Actuator Type
Square, Button
Contact Current Rating
5A
Contact Material
Silver
Contact Plating
Gold, Silver
Current Rating
5A
Depth
17.8mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
17.8mm
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
200000Cycles
Mount
Panel, Snap in
Orientation
Vertical
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UB
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT, DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB16KKW01N-A Datasheet
Download the complete datasheet for NKK Switches UB16KKW01N-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

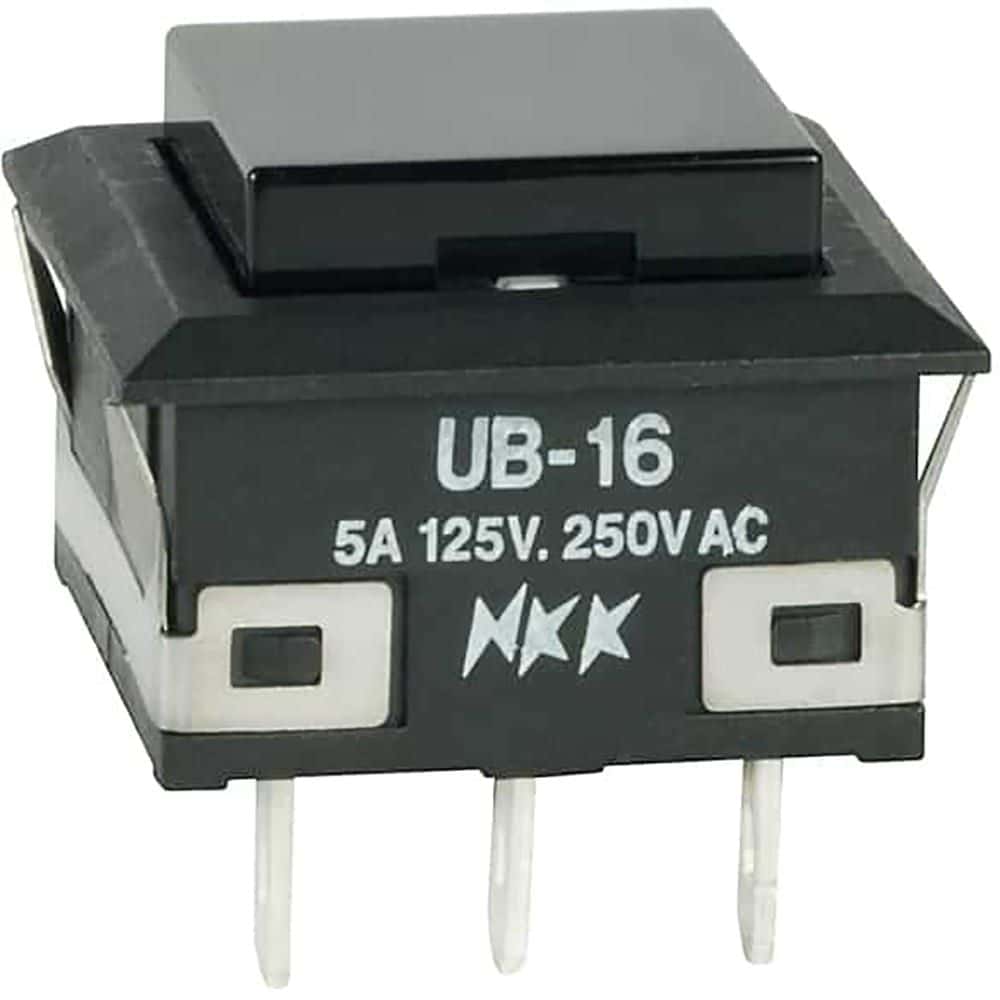

Product Images
