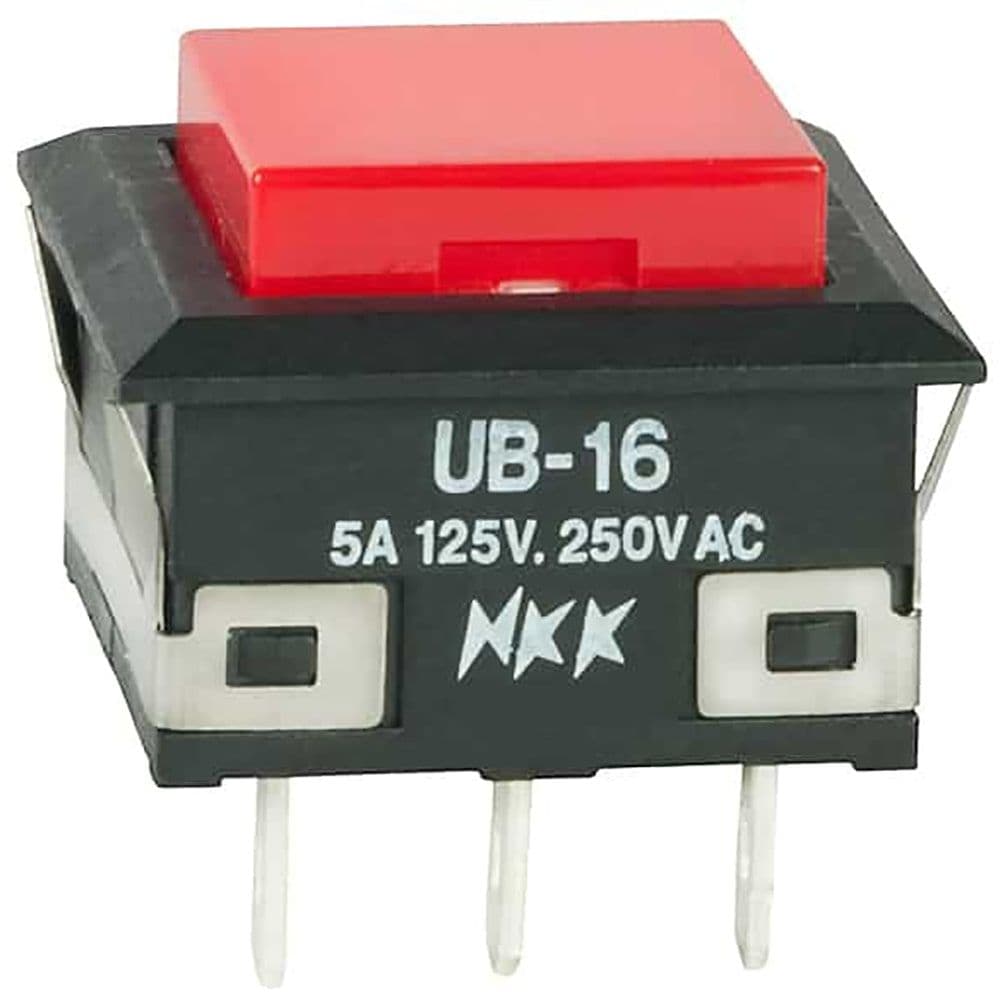

Illuminated pushbutton switch featuring a square button actuator. This SPDT/DPDT switch offers alternate action with a 5A current rating at 125VAC and 30VDC, boasting a gold contact plating. Designed for panel mounting with snap-in installation and solder lug termination, it provides 10,000 electrical cycles and 200,000 mechanical cycles. The LED illumination is red, and the component is UL94 V-0 flammability rated, operating between -20°C and 70°C.
Package125
Current Rating5A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches UB16KKW01N-C technical specifications.
General
Actuator Type
Square, Button
Package/Case
125
Contact Current Rating
5A
Contact Plating
Gold
Current Rating
5A
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
200000Cycles
Min Operating Temperature
-20°C
Mount
Snap in, Panel
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UB
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT, SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB16KKW01N-C Datasheet
Download the complete datasheet for NKK Switches UB16KKW01N-C to view detailed technical specifications.
