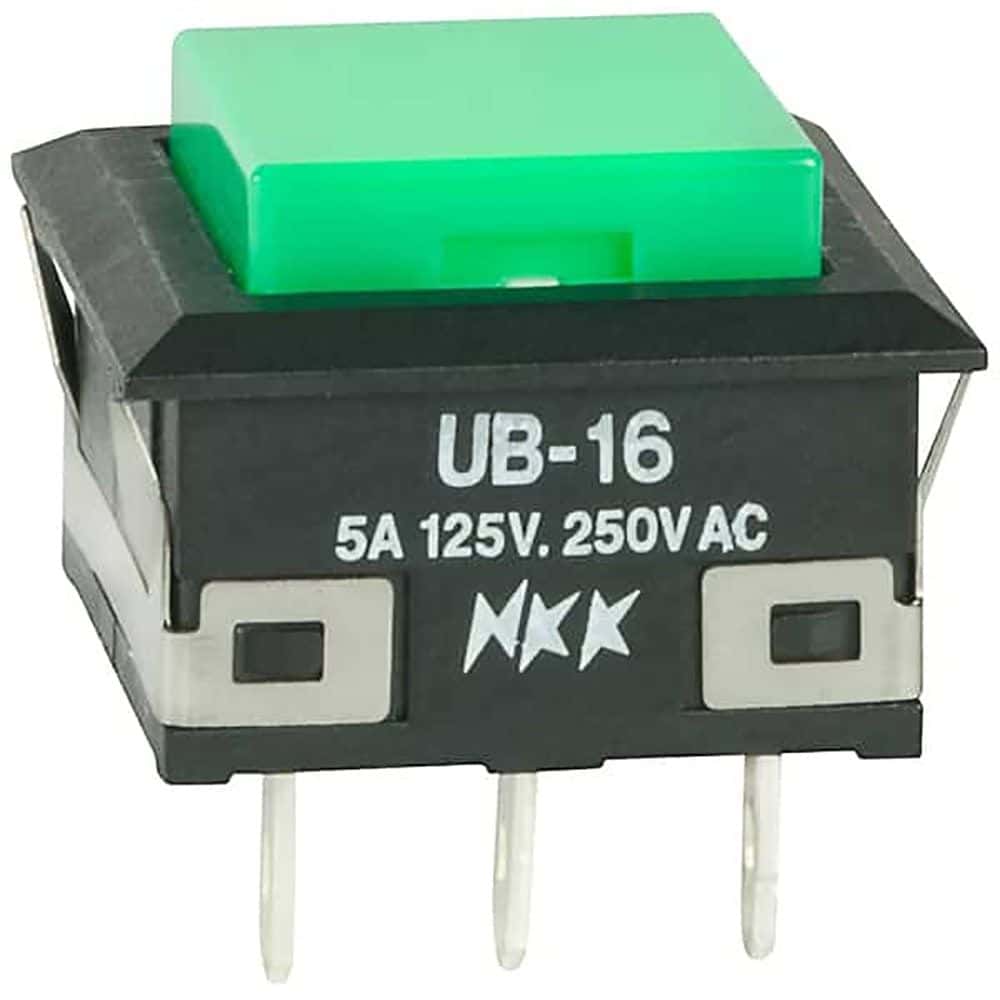

Illuminated pushbutton switch featuring a square, green LED illuminated button. Offers SPDT/DPDT alternate action with a 5A current rating at 250VAC and 30VDC. Constructed with silver contacts and gold/silver plating, this panel-mount switch has a mechanical life of 200,000 cycles and an electrical life of 10,000 cycles. Termination is via solder lug, with a flammability rating of UL94 V-0.
Current Rating5A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches UB16KKW01N-F technical specifications.
General
| Actuator Type | Square, Button |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Gold, Silver |
| Current Rating | 5A |
| Depth | 17.8mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Green |
| Illumination Type | LED |
| Lead Free | Contains Lead |
| Length | 17.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 200000Cycles |
| Mount | Snap in, Panel |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | UB |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT, SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches UB16KKW01N-F Datasheet
