NKK Switches
UB16NBKW015C
Switch Push Button ON ON SPDT Rectangular Button 5A 250VAC 30VDC Alternate Contact Panel Mount Solder Lug
Package125
Current Rating5A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches UB16NBKW015C technical specifications.
General
Package/Case
125
Contact Plating
Silver
Current Rating
5A
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Lead Free
Max Operating Temperature
50°C
Mechanical Life
200000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel
Package Quantity
1
Packaging
Bulk
Series
UB
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB16NBKW015C Datasheet
Download the complete datasheet for NKK Switches UB16NBKW015C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

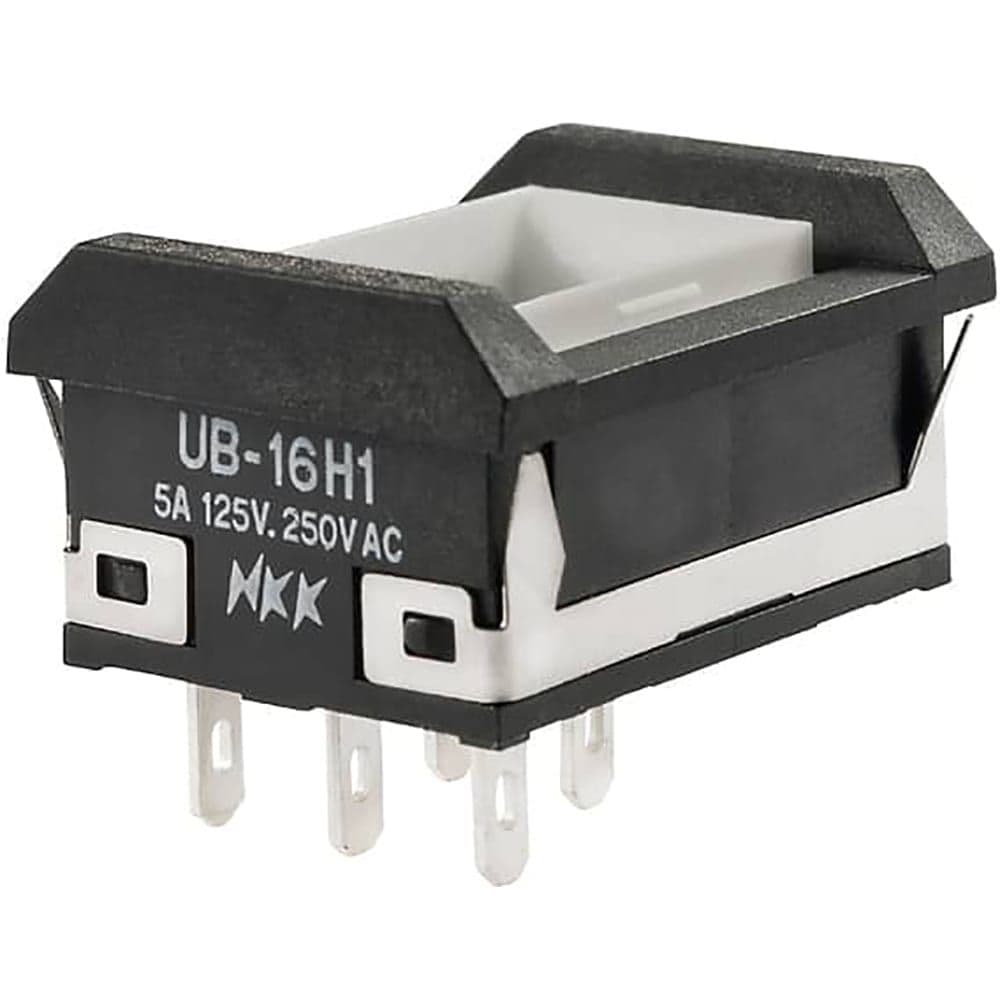

Product Images
