Illuminated pushbutton switch featuring a square actuator and SPDT momentary contact. Rated for 5A at 125VAC and 30VDC, with a silver contact plating. Offers a mechanical life of 1,000,000 cycles and an electrical life of 10,000 cycles. Panel mountable with snap-in design and solder lug termination. LED illumination in red, with a UL94 V-0 flammability rating.
Package125
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB215KKW015C-3JB technical specifications.
General
Actuator Type
Square, Button
Package/Case
125
Contact Plating
Silver
Current Rating
5A
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Contains Lead
Life (Hours)
10000Hour
Max Operating Temperature
50°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Snap in
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
UB2
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB215KKW015C-3JB Datasheet
Download the complete datasheet for NKK Switches UB215KKW015C-3JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

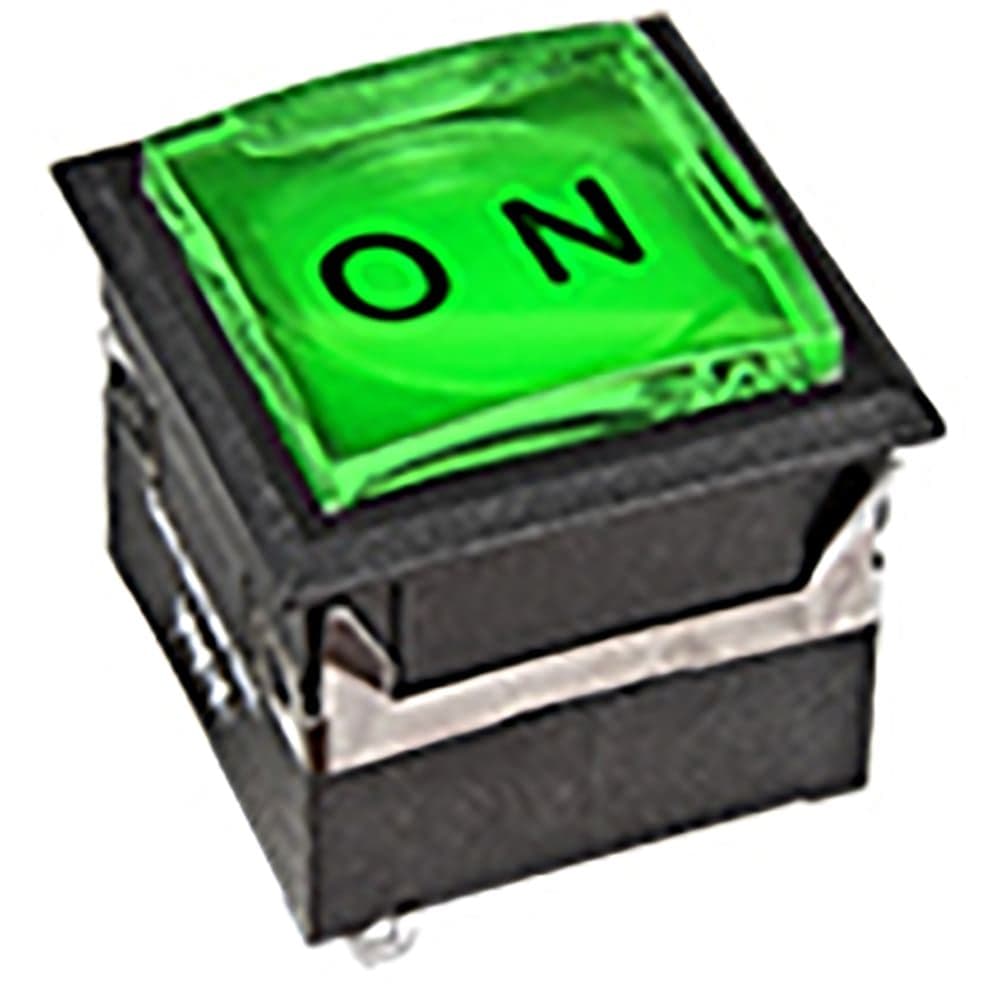

Product Images
