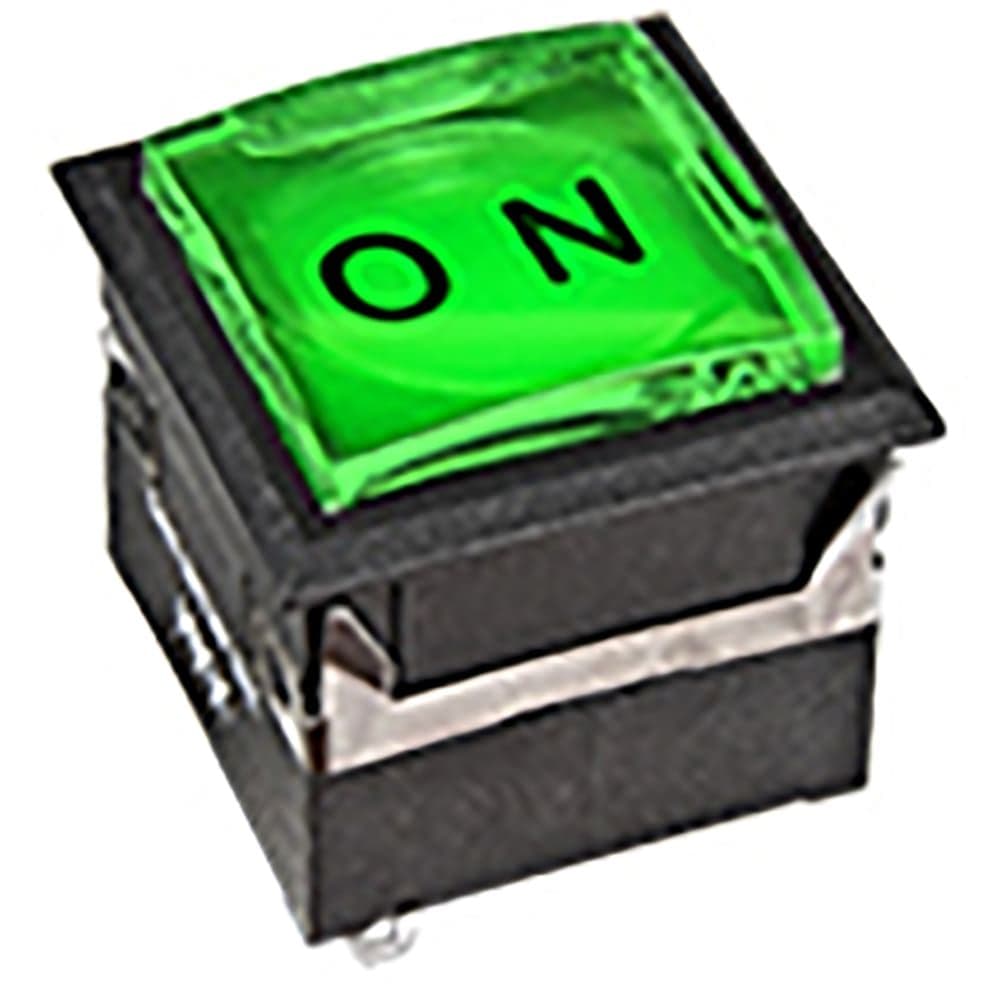

Illuminated pushbutton switch featuring a SPDT ON-ON function with PC pin termination. This through-hole mount component boasts a 5A current rating at 125V AC and 30V DC, with a polycarbonate actuator and silver contacts. Designed for durability, it offers 200,000 mechanical cycles and 10,000 electrical cycles, operating within a -25°C to 70°C temperature range and meeting UL94 V-0 flammability standards.
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches UB216SKW03N-5F technical specifications.
General
| Actuator Material | Polycarbonate |
| Actuator Type | Square, Button |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Depth | 15.24mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Illuminated |
| Length | 15mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 200000Cycles |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UB2 |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches UB216SKW03N-5F Datasheet
Download the complete datasheet for NKK Switches UB216SKW03N-5F to view detailed technical specifications.
