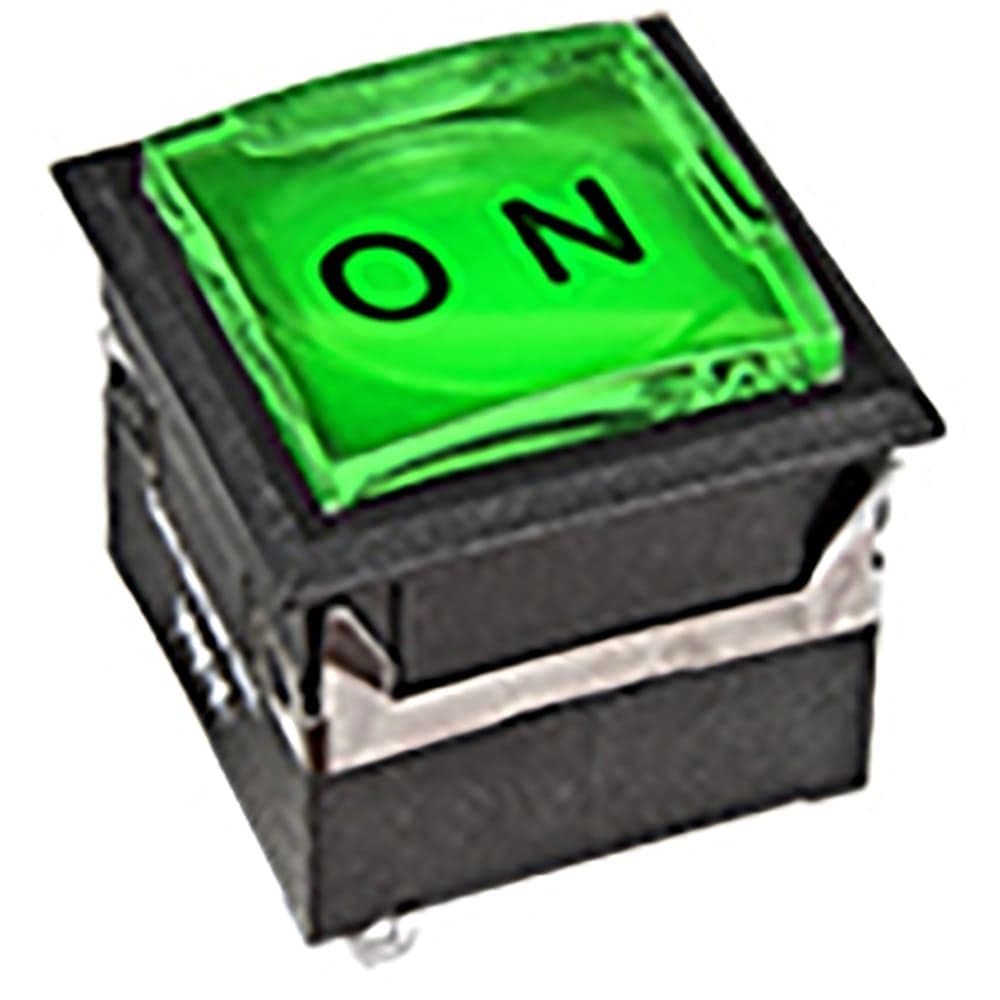

Illuminated pushbutton switch featuring a DPDT momentary contact configuration. Rated for 5A at 250VAC and 30VDC, with a silver contact material and plating. Offers a mechanical life of 1,000,000 cycles and an electrical life of 10,000 cycles. Panel mountable with solder lug termination, it includes dual-color green and red LED illumination and a polycarbonate square button actuator. Operating temperature range is -25°C to 50°C, with a UL94 V-0 flammability rating.
Package125
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB225KKW016CF-1JB technical specifications.
General
Actuator Material
Polycarbonate
Actuator Type
Square, Button
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Contact Plating
Silver
Current Rating
5A
Depth
19mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green, Red
Illumination Type
Illuminated, LED
Lead Free
Lead Free
Length
19mm
Max Current Rating
5A
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Panel, Snap in
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
UB2
Switch Function
On-Mom
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB225KKW016CF-1JB Datasheet
Download the complete datasheet for NKK Switches UB225KKW016CF-1JB to view detailed technical specifications.
