Illuminated pushbutton switch featuring a square, orange LED illuminated button. DPDT momentary contact configuration with PC pin termination for through-hole mounting. Rated for 0.1A at 28VAC/28VDC, with a 0.4VA contact rating. Offers an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles. Operating temperature range from -25°C to 50°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches UB225SKG035D-1JB technical specifications.
General
Actuator Type
Square, Button
Contact Material
Copper
Contact Plating
Gold
Depth
15.24mm
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Orange
Illumination Type
LED
Lead Free
Contains Lead
Length
15.24mm
Life (Hours)
200000Hour
Max Current Rating
100mA
Max Operating Temperature
50°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
UB2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Width
15mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB225SKG035D-1JB Datasheet
Download the complete datasheet for NKK Switches UB225SKG035D-1JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

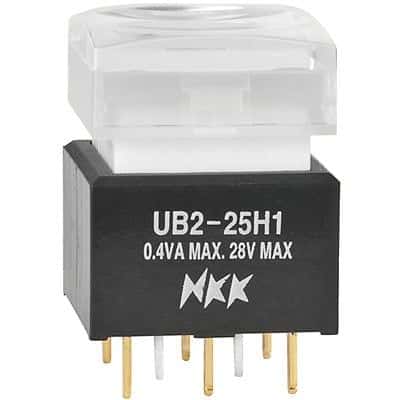

Product Images
