NKK Switches
YB15MKG01-6B-JB
Switch Push Button ON (ON) SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches YB15MKG01-6B-JB technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Gold
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Color
White
Illumination Type
LED
Max Operating Temperature
50°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel
Packaging
Bulk
RoHS Compliant
Yes
Series
YB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches YB15MKG01-6B-JB Datasheet
Download the complete datasheet for NKK Switches YB15MKG01-6B-JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

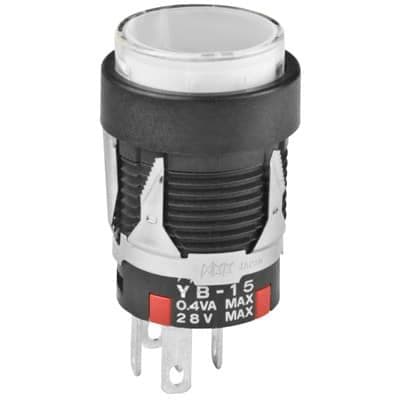

Product Images
