Enclosed AC-DC LED driver with 1.2A max output current and 25V nominal output voltage, delivering up to 20W of power. Features analog dimming, 85% efficiency, and robust protection including OVP, OTP, and SCP. Designed for chassis mounting with wire lead termination, this unit operates from 90V to 277V AC input and offers 1.5kV isolation voltage. Approvals include UL, CSA, CE, and EN, with an IP66 rating for environmental protection.
MountingChassis Mount, Screw
Power20W
Quick Jump:
Technical Specifications
Nmb-Minebea CLSD001B technical specifications.
General
Approvals
UL, CSA, CE, EN
Depth
33mm
Dimming
Analog
Efficiency
85%
Features
OVP, OTP, SCP
Height
1.3inch
Isolation Voltage
1.5kV
Length
6.1inch
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Max Output Current
1.2A
Max Output Power
20W
Max Power Dissipation
20W
Max Supply Voltage
277V
Min Supply Voltage
90V
Mount
Chassis Mount, Screw
Nominal Output Voltage
25V
Number of Channels
1
Number of Outputs
1
Output Current
1.2A
Output Power
20W
Output Voltage
25V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Ratings
IP66
Series
CLSD
Termination
Wire Leads
Weight
1.1lb
Width
2.17inch
Compliance
RoHS
Compliant
Datasheet
Nmb-Minebea CLSD001B Datasheet
Download the complete datasheet for Nmb-Minebea CLSD001B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

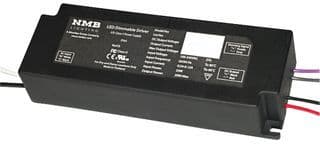

Product Images
