Surface mount telecom IC operating across a 430MHz to 928MHz frequency range, with a primary focus on 915MHz. Features a 50Kbps data rate and -100dBm sensitivity. Transmitting current is 30mA, receiving current is 12.5mA, with adjustable output power up to 10dBm. Utilizes an SPI interface and is housed in a QFN package. Operates within a 1.9V to 3.6V supply voltage range and a -40°C to 85°C temperature range.
Frequency915MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Nordic Semiconductor NRF905 technical specifications.
General
Package/Case
QFN
Current - Receiving
12.5mA
Current - Transmitting
30mA
Data Rate
50Kbps
Depth
5mm
Frequency
915MHz
Height
0.85mm
Interface
SPI
Length
5mm
Max Frequency
928MHz
Min Frequency
430MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.9V
Mount
Surface Mount
Output Power (dBm)
10dBm
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Sensitivity
-100dBm
Termination
SMD/SMT
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Nordic Semiconductor NRF905 Datasheet
Download the complete datasheet for Nordic Semiconductor NRF905 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

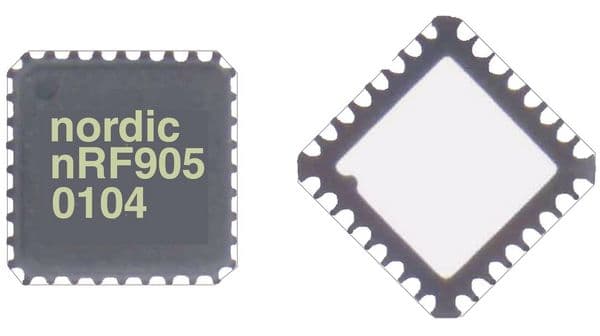

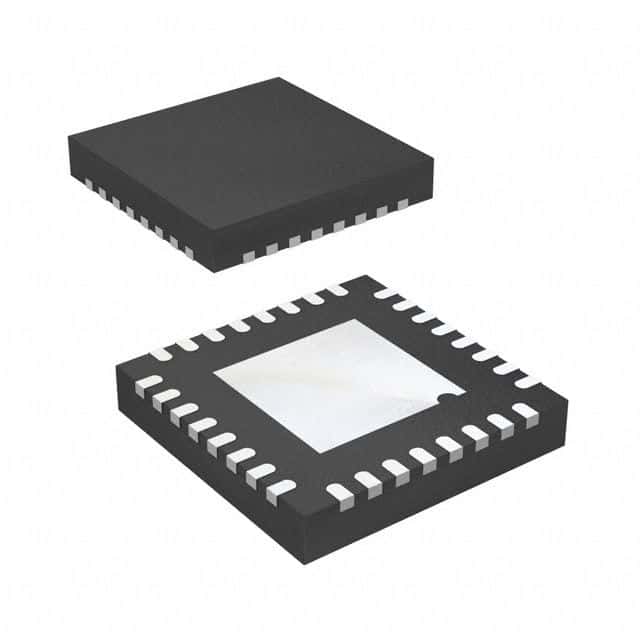

Product Images
