NTE Electronics
NTE153
Power Bipolar Transistor, 4A I(C), 90V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
PackageTO-220
Current Rating4A
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
NTE Electronics NTE153 technical specifications.
General
Package/Case
TO-220
Collector Base Voltage (VCBO)
90V
Collector Emitter Breakdown Voltage
90V
Collector Emitter Saturation Voltage
1.5V
Collector Emitter Voltage (VCEO)
-90V
Collector-emitter Voltage-Max
1.5V
Current Rating
4A
Emitter Base Voltage (VEBO)
5V
Height
0.61inch
Length
0.42inch
Max Collector Current
20uA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
40W
Mount
Through Hole
Polarity
PNP
Power Dissipation
40W
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Transition Frequency
8MHz
DC Rated Voltage
90V
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE153 Datasheet
Download the complete datasheet for NTE Electronics NTE153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

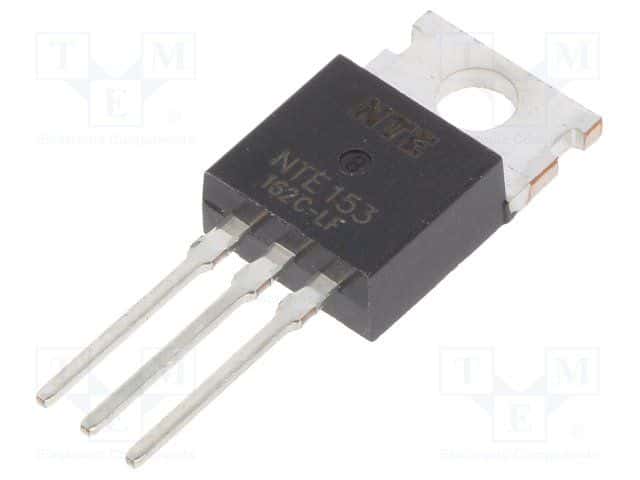

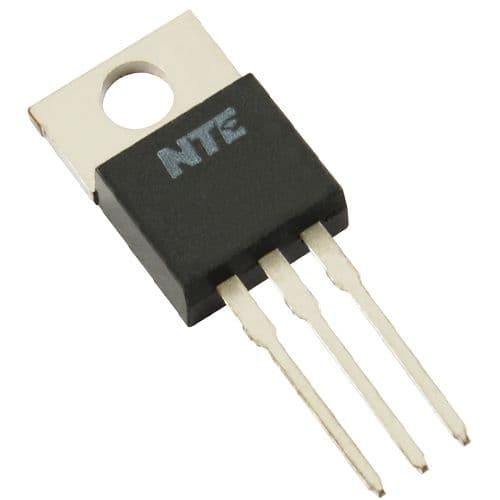

Product Images
