NTE Electronics
NTE182
Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-127, Plastic/Epoxy, 3 Pin
Frequency2MHz
PackageTO-127
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
NTE Electronics NTE182 technical specifications.
General
| Package/Case | TO-127 |
| Collector Base Voltage (VCBO) | 70V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1.1V |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 8V |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 17mm |
| Length | 13.4mm |
| Max Collector Current | 700uA |
| Max Frequency | 2MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 90W |
| Mount | Through Hole |
| Polarity | NPN |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Transition Frequency | 2MHz |
| Width | 3.82mm |
Compliance
| RoHS | Not Compliant |
Datasheet
NTE Electronics NTE182 Datasheet
Download the complete datasheet for NTE Electronics NTE182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

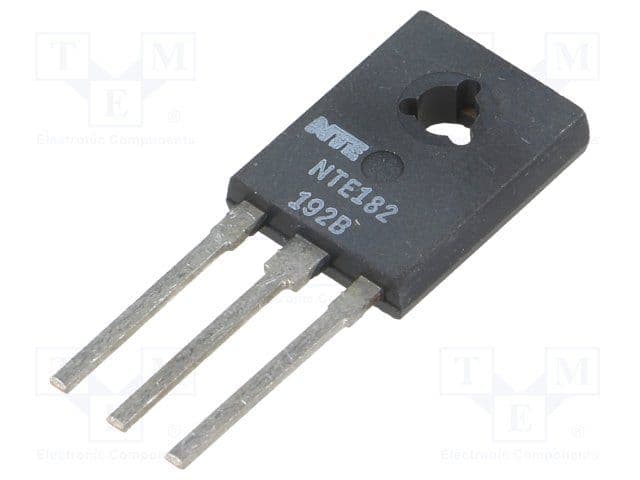

Product Images
