NTE Electronics
NTE192A
Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92HS, 3 PIN
PackageTO-92
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
NTE Electronics NTE192A technical specifications.
General
| Package/Case | TO-92 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Emitter Base Voltage (VEBO) | 5V |
| Max Collector Current | 100nA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 560mW |
| Mount | Through Hole |
| Polarity | NPN |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
NTE Electronics NTE192A Datasheet
Download the complete datasheet for NTE Electronics NTE192A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

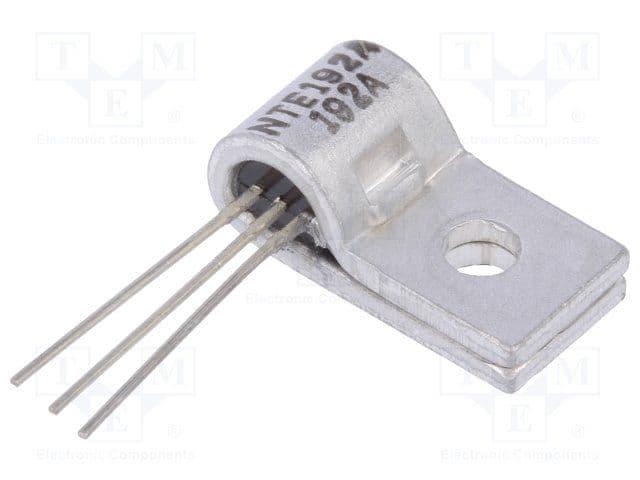

Product Images
