NTE Electronics
NTE232
Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-92
PackageTO-92
MountingThrough Hole
PolarityPNP
Power750mW
Quick Jump:
Technical Specifications
NTE Electronics NTE232 technical specifications.
General
Package/Case
TO-92
Collector Base Voltage (VCBO)
30V
Collector Emitter Breakdown Voltage
30V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
1.5V
Emitter Base Voltage (VEBO)
8V
Max Collector Current
100nA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
625mW
Mount
Through Hole
Polarity
PNP
Power Dissipation
750mW
RoHS Compliant
Yes
Transition Frequency
125MHz
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE232 Datasheet
Download the complete datasheet for NTE Electronics NTE232 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

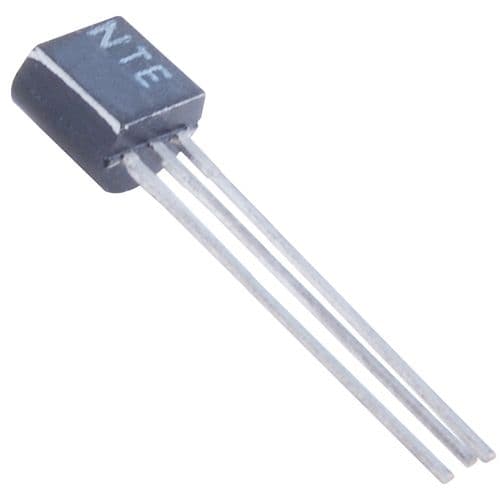

Product Images
