NTE Electronics
NTE2371
Power Field-Effect Transistor, 19A I(D), 100V, 0.2ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET,
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
NTE Electronics NTE2371 technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
19A
Drain to Source Voltage (Vdss)
100V
Gate to Source Voltage (Vgs)
20V
Input Capacitance
1.4nF
Leakage Current
500uA
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
150W
Mount
Through Hole
Number of Channels
1
Rds On Max
200mR
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE2371 Datasheet
Download the complete datasheet for NTE Electronics NTE2371 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

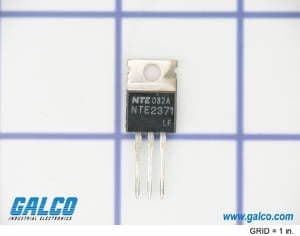

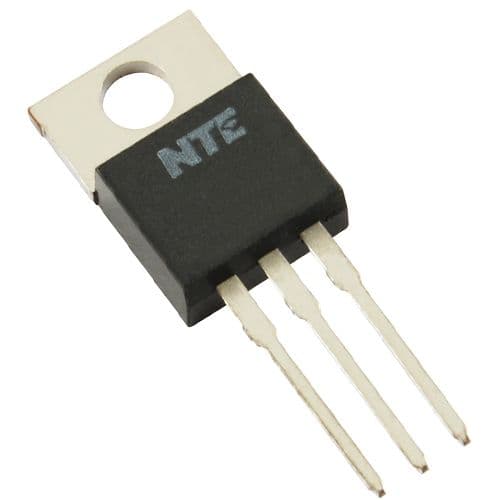

Product Images
