PackageTO-236-3
MountingSurface Mount
PolarityNPN
Power200mW
Quick Jump:
Technical Specifications
NTE Electronics NTE2402 technical specifications.
General
| Package/Case | TO-236-3 |
| Collector Base Voltage (VCBO) | 20V |
| Collector Emitter Breakdown Voltage | 15V |
| Emitter Base Voltage (VEBO) | 2V |
| Gain | 18dB |
| Max Collector Current | 25mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Polarity | NPN |
| Power Dissipation | 200mW |
| RoHS Compliant | Yes |
| Transition Frequency | 5GHz |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE2402 Datasheet
Download the complete datasheet for NTE Electronics NTE2402 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

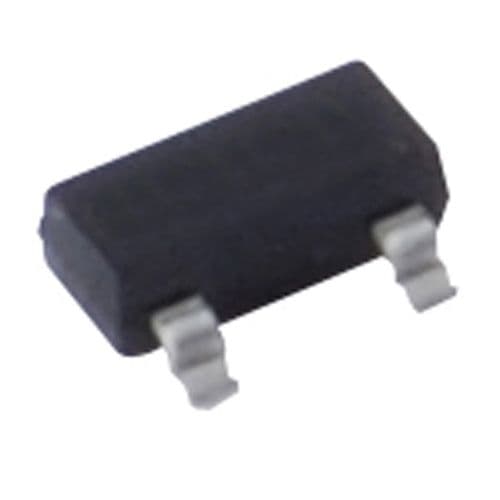

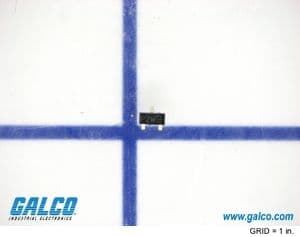

Product Images
