NTE Electronics
NTE2407
Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon
Frequency300MHz
PackageSOT-23
MountingSurface Mount, Through Hole
PolarityPNP
Quick Jump:
Technical Specifications
NTE Electronics NTE2407 technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1.6V |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 1.6V |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 1.3mm |
| Length | 3mm |
| Max Collector Current | 50nA |
| Max Frequency | 300MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 225mW |
| Mount | Surface Mount, Through Hole |
| Polarity | PNP |
| Power Dissipation | 300mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 300MHz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE2407 Datasheet
Download the complete datasheet for NTE Electronics NTE2407 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

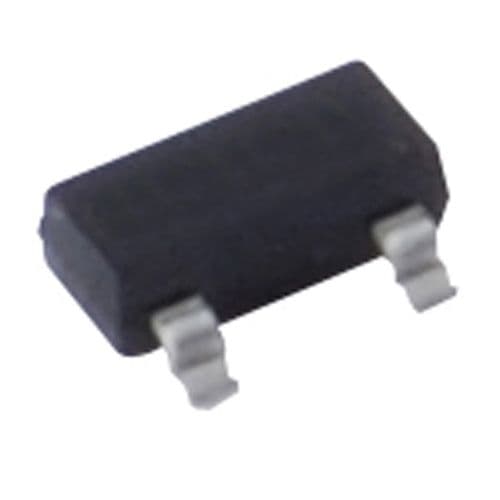

Product Images
