NTE Electronics
NTE294
Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92
PackageTO-92
MountingThrough Hole
PolarityPNP
Power1W
Quick Jump:
Technical Specifications
NTE Electronics NTE294 technical specifications.
General
| Package/Case | TO-92 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | -50V |
| Collector-emitter Voltage-Max | 400mV |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 0.339inch |
| Length | 0.239inch |
| Max Collector Current | 100nA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Polarity | PNP |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 200MHz |
| Width | 0.2inch |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE294 Datasheet
Download the complete datasheet for NTE Electronics NTE294 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

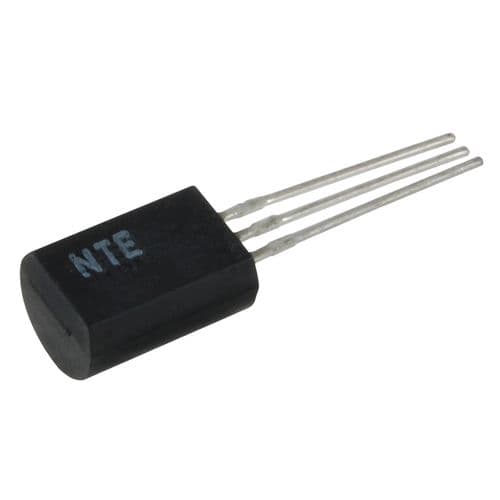

Product Images
