PackageTO-3
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
NTE Electronics NTE52 technical specifications.
General
| Package/Case | TO-3 |
| Collector Emitter Breakdown Voltage | 450V |
| Collector Emitter Voltage (VCEO) | 450V |
| Collector-emitter Voltage-Max | 3V |
| Emitter Base Voltage (VEBO) | 6V |
| Max Collector Current | 500uA |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 125W |
| Mount | Through Hole |
| Polarity | NPN |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE52 Datasheet
Download the complete datasheet for NTE Electronics NTE52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

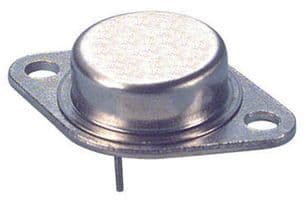

Product Images
