PackageTO-92
Current Rating800mA
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
NTE Electronics NTE5404 technical specifications.
General
Package/Case
TO-92
Current Rating
800mA
Height
0.21inch
Hold Current
3mA
Length
0.204inch
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Mount
Through Hole
Power Dissipation
200mW
RMS Current (Irms)
800mA
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
0.165inch
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE5404 Datasheet
Download the complete datasheet for NTE Electronics NTE5404 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

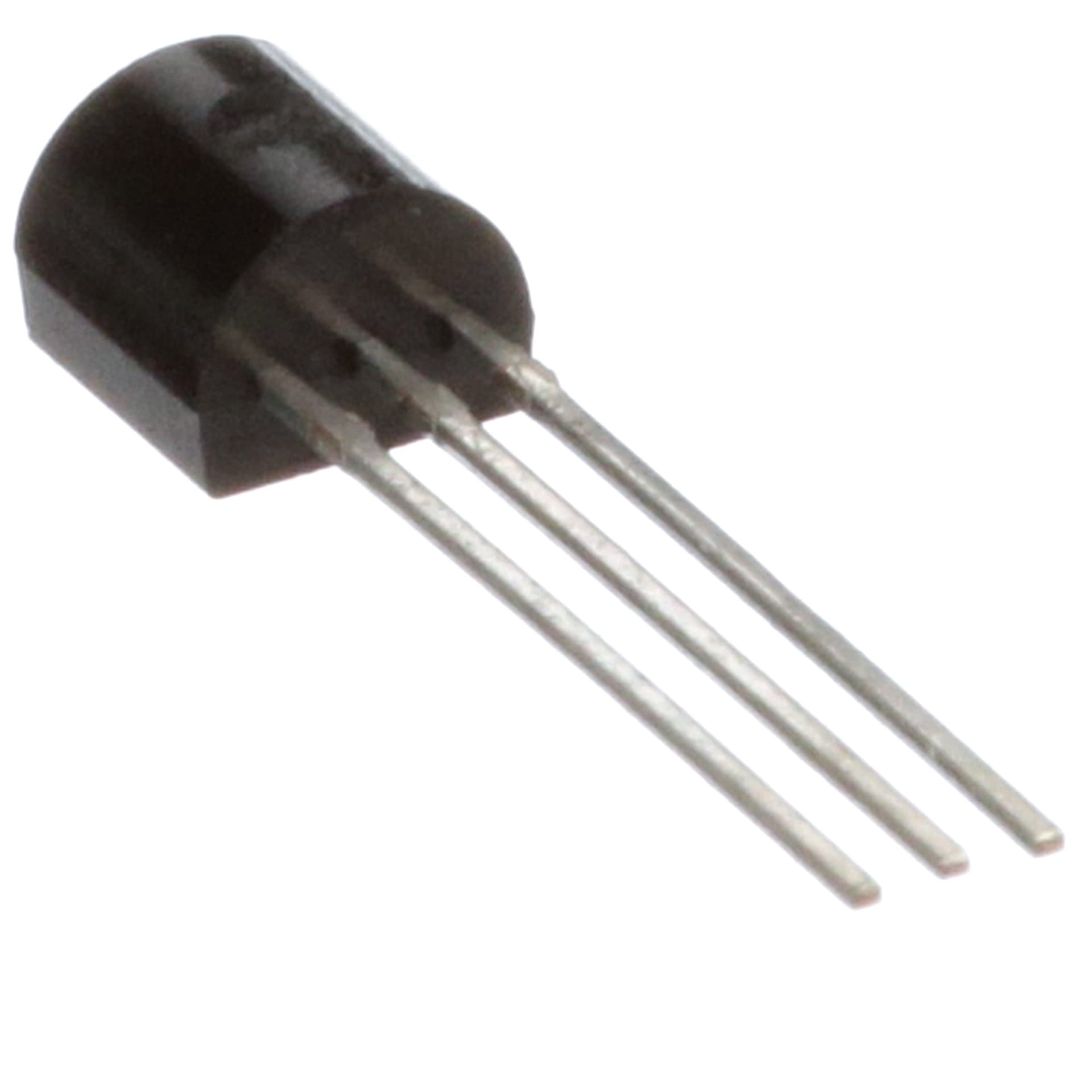

Product Images
