NTE Electronics
NTE5539
Silicon Controlled Rectifier, 55A I(T)RMS, 55000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-218,
PackageTO-218
Current Rating55A
MountingThrough Hole
Power40W
Quick Jump:
Technical Specifications
NTE Electronics NTE5539 technical specifications.
General
Package/Case
TO-218
Current Rating
55A
Height
0.55inch
Hold Current
60mA
Length
0.6inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Mount
Through Hole
Power Dissipation
40W
Primary Type
HIGH VOLTAGE
Reach SVHC Compliant
No
RMS Current (Irms)
55A
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
0.173inch
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE5539 Datasheet
Download the complete datasheet for NTE Electronics NTE5539 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

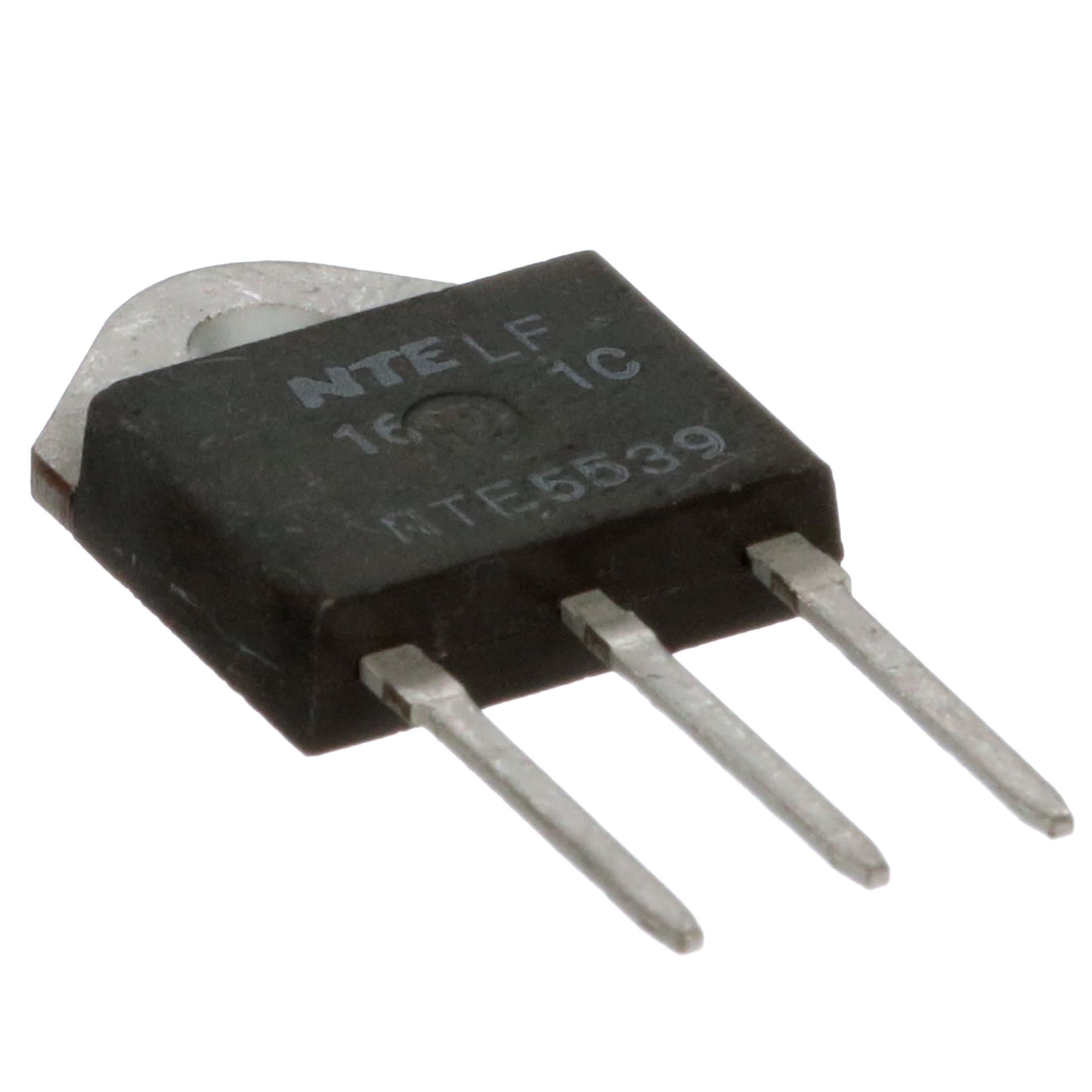

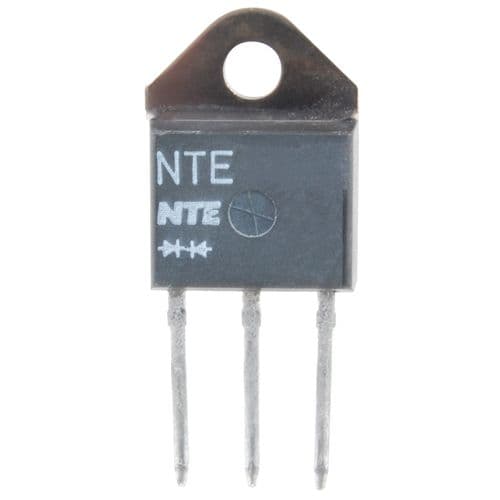

Product Images
