Technical Specifications
NTE Electronics NTE92 technical specifications.
General
| Collector Base Voltage (VCBO) | 200V |
| Collector Emitter Breakdown Voltage | 200V |
| Collector Emitter Voltage (VCEO) | 200V |
| Emitter Base Voltage (VEBO) | 6V |
| Max Collector Current | 15A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150W |
| Mount | Through Hole |
| Polarity | NPN |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 20MHz |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE92 Datasheet
Download the complete datasheet for NTE Electronics NTE92 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

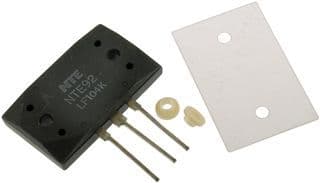

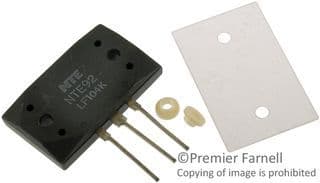

Product Images
