PackageTO-220
Current Rating1A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
NTE Electronics NTE960 technical specifications.
General
Package/Case
TO-220
Current Rating
1A
Dropout Voltage
2V
Height
0.61inch
Length
0.42inch
Max Input Voltage
35V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
1A
Max Output Voltage
5V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Polarity
Positive
Power Dissipation
15.4mW
Power Supply Rejection Ratio (PSRR)
68dB
Quiescent Current
8mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE960 Datasheet
Download the complete datasheet for NTE Electronics NTE960 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

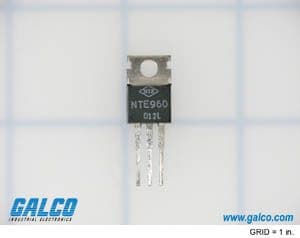

Product Images
