General purpose isolation amplifier, featuring a single unidirectional channel with a 100Mbps data rate and 8ns propagation delay. This component offers 2.5kV isolation voltage and operates within a 3V to 5.5V supply voltage range. Packaged in a through-hole DIP-8 configuration, it measures 10.2mm in length, 3.81mm in width, and 6.6mm in depth, with a maximum operating temperature of 85°C.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
NVE IL610-2E technical specifications.
General
Package/Case
DIP
Channel Type
Unidirectional
Data Rate
100Mbps
Depth
6.6mm
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
10.2mm
Max Input Current
75mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
1
Output Current
4mA
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
8ns
Pulse Width Distortion (PWD)
5ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IsoLoop®
Type
General Purpose
Width
3.81mm
Compliance
RoHS
Compliant
Datasheet
NVE IL610-2E Datasheet
Download the complete datasheet for NVE IL610-2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

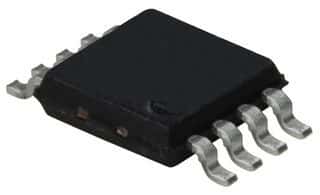

Product Images
