General purpose isolation amplifier featuring 2 unidirectional channels and a 100Mbps data rate. This surface mount IC offers 2.5kV isolation voltage and a propagation delay of 8ns with 5ns pulse width distortion. Operating within a 3V to 5.5V supply voltage range, it is housed in a compact MSOP package measuring 3.1mm x 1.1mm x 5mm.
PackageMSOP
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NVE IL611-1E technical specifications.
General
Package/Case
MSOP
Channel Type
Unidirectional
Data Rate
100Mbps
Depth
5mm
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
3.1mm
Max Input Current
75mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Output Current
4mA
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
8ns
Pulse Width Distortion (PWD)
5ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IsoLoop®
Supply Current
4mA
Type
General Purpose
Width
1.1mm
Compliance
RoHS
Compliant
Datasheet
NVE IL611-1E Datasheet
Download the complete datasheet for NVE IL611-1E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

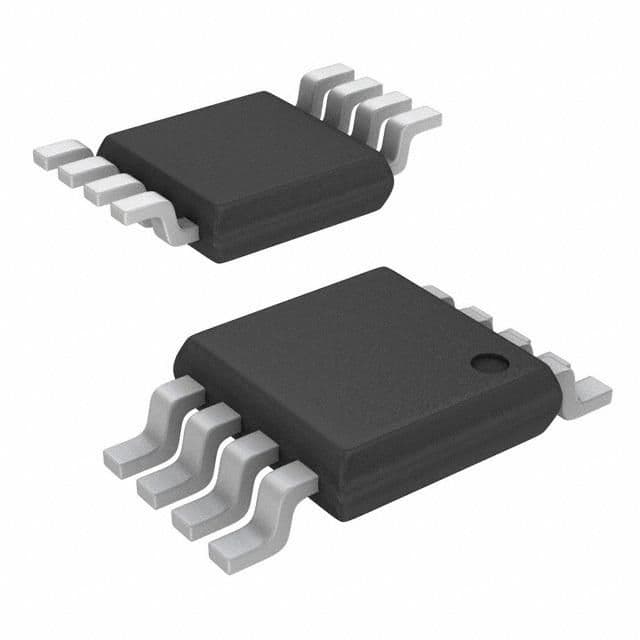

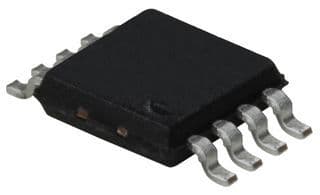

Product Images
