Technical Specifications
NXP 74ABT00DB,112 technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
High Level Output Current
-15mA
Logic Function
NAND GATE
Low Level Output Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Package Quantity
78
Packaging
Rail/Tube
Propagation Delay
3.6ns
Quiescent Current
50uA
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Turn-On Delay Time
2.5ns
Compliance
RoHS
Compliant
Datasheet
NXP 74ABT00DB,112 Datasheet
Download the complete datasheet for NXP 74ABT00DB,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

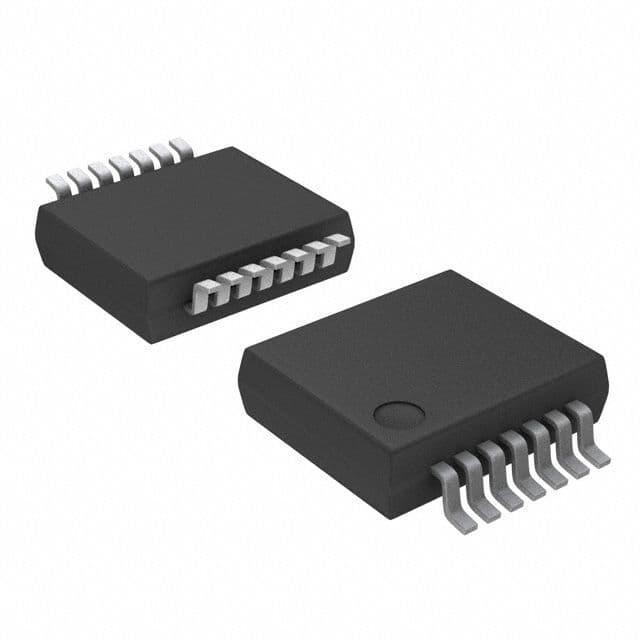

Product Images
