The 74AHC32BQ,115 is a 4-input OR gate from NXP, fabricated using CMOS technology. It operates over a temperature range of -40°C to 125°C and is supplied with a voltage of 5V. The device features a propagation delay of 7.5ns and a quiescent current of 2uA. It is available in a SOT-762 package, suitable for surface mount applications, and is compliant with RoHS regulations.
PackageSOT-762
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP 74AHC32BQ,115 technical specifications.
General
| Package/Case | SOT-762 |
| Contact Plating | Gold |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | OR GATE |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 7.5ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74AHC |
| Technology | CMOS |
| Turn-On Delay Time | 3.5ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74AHC32BQ,115 Datasheet
Download the complete datasheet for NXP 74AHC32BQ,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

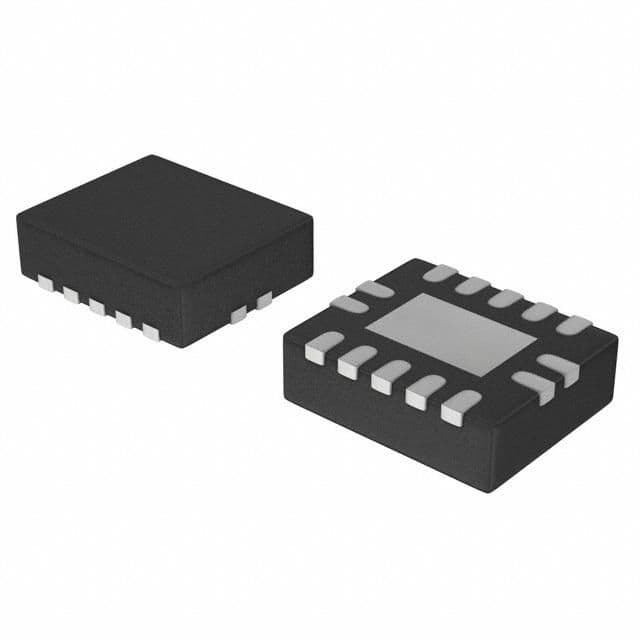

Product Images
