Technical Specifications
NXP 74LVC1G02GW,165 technical specifications.
General
| Package/Case | TSSOP |
| High Level Output Current | -32mA |
| Logic Function | NOR GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Propagation Delay | 1.7ns |
| Quiescent Current | 200uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 2.1ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74LVC1G02GW,165 Datasheet
Download the complete datasheet for NXP 74LVC1G02GW,165 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

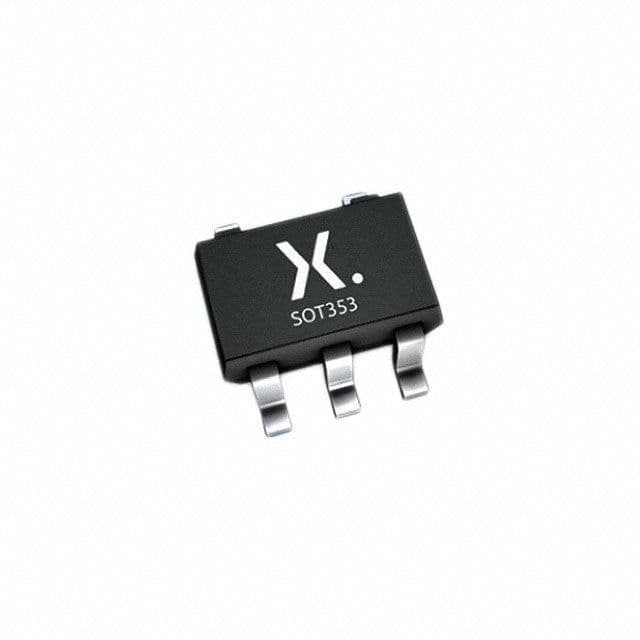

Product Images
