Frequency1.09GHz
Current Rating10A
PolarityN-CHANNEL
Power200W
Quick Jump:
Technical Specifications
NXP BLA1011S-200 technical specifications.
General
Current Rating
10A
Drain to Source Breakdown Voltage
75V
Drain to Source Resistance
60mR
Drain to Source Voltage (Vdss)
75V
Frequency
1.09GHz
Gain
13dB
Gate to Source Voltage (Vgs)
22V
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
700W
Output Power
200W
Package Quantity
20
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
700W
RoHS Compliant
Yes
Technology
LDMOS
DC Rated Voltage
75V
Compliance
RoHS
Compliant
Datasheet
NXP BLA1011S-200 Datasheet
Download the complete datasheet for NXP BLA1011S-200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

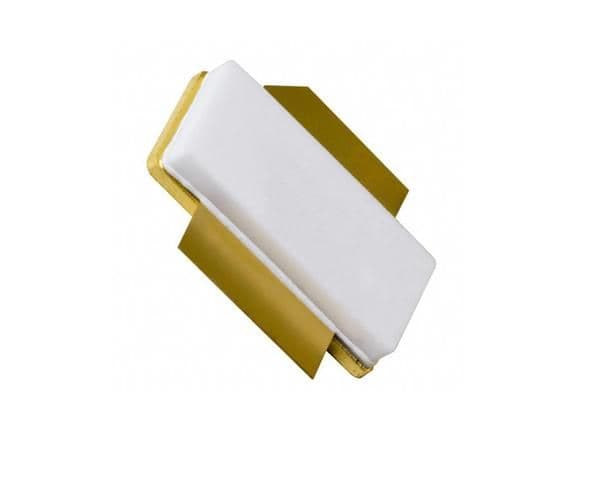

Product Images
