Technical Specifications

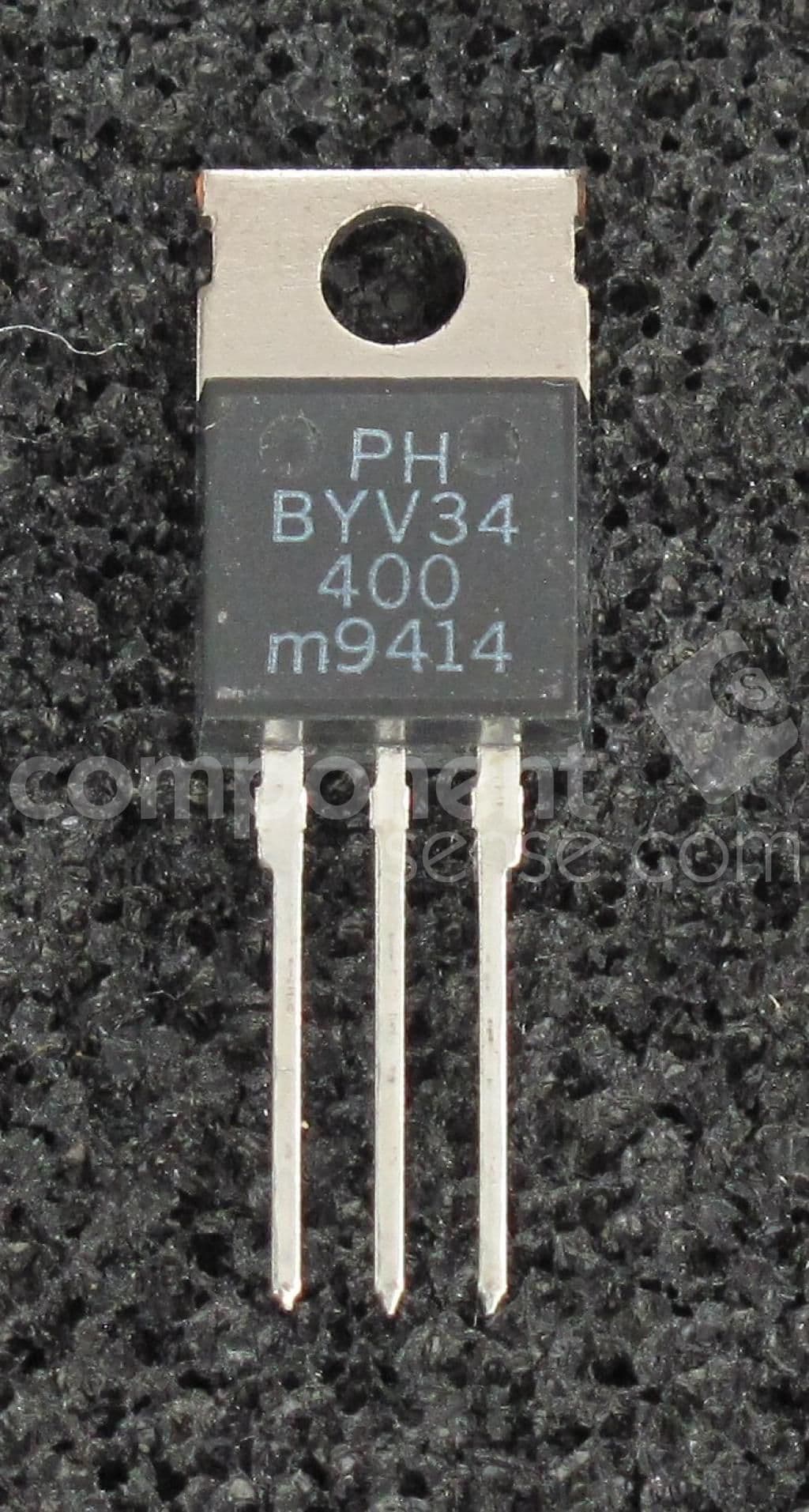

NXP BYV34-400 technical specifications.
General
| Package/Case | TO-220AB |
| Current Rating | 20A |
| Forward Current | 20A |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 120A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Mount | Through Hole |
| Output Current | 20A |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 132A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
NXP BYV34-400 Datasheet
Download the complete datasheet for NXP BYV34-400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
