Technical Specifications
NXP IP4359CX4/LF,135 technical specifications.
General
| Capacitance | 1.5pF |
| Depth | 0.76mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 0.76mm |
| Max Breakdown Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | IP4359CX4 |
| Termination | SMD/SMT |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
NXP IP4359CX4/LF,135 Datasheet
Download the complete datasheet for NXP IP4359CX4/LF,135 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

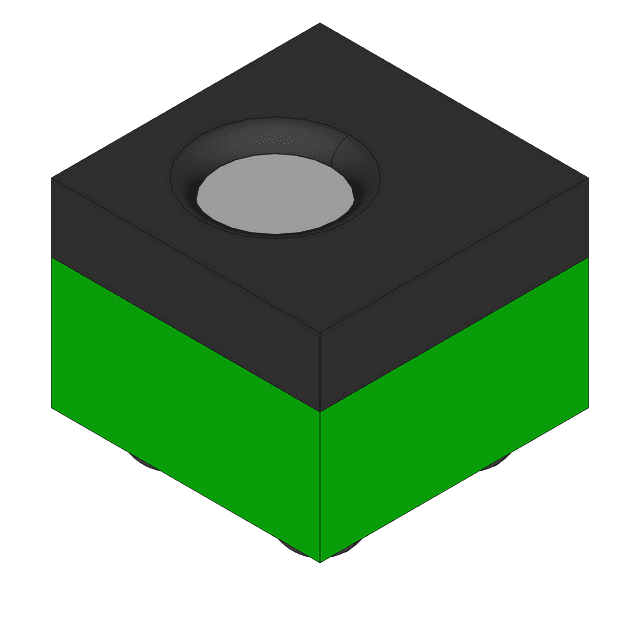

Product Images
