PackageAluminum
Resistance7.5R
Voltage Rating520V
MountingFlanges
Quick Jump:
Technical Specifications
Ohmite 825F7R5E technical specifications.
General
Package/Case
Aluminum
Depth
27.79mm
Height
14.28mm
Lead Free
Lead Free
Lead/Base Style
Solder
Length
49.23mm
Max Operating Temperature
275°C
Min Operating Temperature
-55°C
Max Power Dissipation
25W
Mount
Flanges
Packaging
Tray
Reach SVHC Compliant
Unknown
Resistance
7.5R
Resistance Tolerance
1%
Resistor Type
Wirewound
Series
Metal-Mite®89
Technology
WIRE WOUND
Termination
Axial
Tolerance
1%
Voltage Rating
520V
DC Rated Voltage
520V
Compliance
RoHS
Compliant
Datasheet
Ohmite 825F7R5E Datasheet
Download the complete datasheet for Ohmite 825F7R5E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

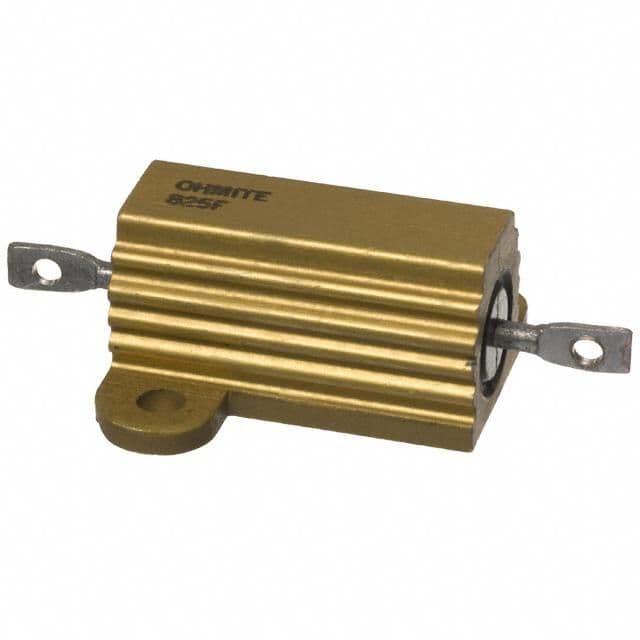

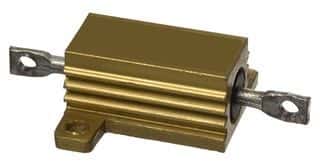

Product Images
