PackageRadial
Resistance10R
Voltage Rating2.845kV
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications

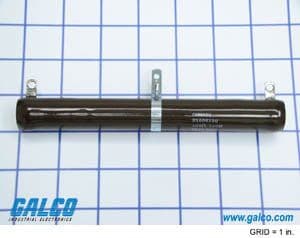

Ohmite D100K10R technical specifications.
General
Package/Case
Radial
Diameter
12.7mm
Lead Free
Lead Free
Length
165.1mm
Material
Ceramic
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
100W
Mount
Chassis Mount, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
10R
Resistance Tolerance
10%
Resistor Type
Wirewound
RoHS Compliant
No
Series
Dividohm®210
Termination
Lug
Tolerance
10%
Voltage Rating
2.845kV
DC Rated Voltage
2.84kV
Compliance
RoHS
Not Compliant
Datasheet
Ohmite D100K10R Datasheet
Download the complete datasheet for Ohmite D100K10R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
